Air to Fuel Ratio: The Foundation of Engine Tuning

Mastering the Mix

Air-Fuel Ratio (AFR) tuning is a critical aspect of automotive engine tuning that directly influences power, fuel economy, and emissions. This guide will get deep into advanced AFR optimisation techniques, including understanding lambda (λ) values and step-by-step tuning procedures for various fuels. I'll cover how AFR affects performance and efficiency, outline a precise tuning workflow, and address fuel-specific adjustments. (If you’re new to tuning, see our beginner’s guide first.)

AFR and Lambda Explained

Air-Fuel Ratio (AFR) is the mass of air divided by the mass of fuel in the combustion mixture. A balanced mix at which fuel burns completely with no excess air or fuel is called the stoichiometric ratio. For petrol, stoichiometric AFR is roughly 14.7:1 (14.7 parts air to 1 part fuel by mass). Mathematically, AFR is defined as:

• AFR = mass of air / mass of fuel

Lambda (λ) is a normalised measure of AFR that applies to any fuel. It is the ratio of the actual AFR to the stoichiometric AFR for that fuel. A λ value of 1.0 means the mixture is at stoichiometry; λ < 1 indicates a rich mixture (more fuel than stoich), while λ > 1 indicates a lean mixture (more air than stoich). Lambda is defined as:

• λ = AFR_actual / AFR_stoichiometric

Using lambda is often preferable in tuning because it maintains consistent comparisons across different fuels. For example, λ = 0.85 represents the same relative richness whether running petrol or E85, only the AFR numbers differ. The table below lists typical stoichiometric AFR values for common fuels:

Knowing the stoichiometric AFR, you can convert between AFR and λ easily. AFR for a given fuel = λ × (fuel’s stoich AFR). The next table illustrates this AFR–λ conversion for petrol versus E85:

Using λ helps avoid confusion. For instance, a wideband O₂ sensor reading of λ = 0.85 means “rich” regardless of fuel; on petrol this is ~12.5:1 AFR, while on E85 it’s ~8.3:1. In practice, tuning software or wideband gauges often allow you to view either AFR (for a selected fuel type) or lambda. It’s wise to stick to lambda when tuning with fuels like E85 or methanol so that you’re always speaking the engine’s “true” air-fuel language.

AFR’s Role in Performance, Economy & Emissions

Getting AFR right is a balancing act between power, efficiency, and emissions. Engines make maximum power with mixtures richer than stoichiometric. A slightly rich mix burns faster and cooler, which helps maximise torque and prevent knock. You'll find that most petrol engines achieve peak power around ~12.5:1 to 13.0:1 AFR (λ ≈ 0.85–0.88). Forced-induction engines often need to run even richer (down to ~11.5:1, λ ≈ 0.78) under boost to control combustion heat and detonation. Extra fuel in these high-load conditions serves as a coolant and knock insurance.

For fuel economy, the opposite strategy is used: lean mixtures can improve mileage by extracting more energy per unit of fuel. Cruising at λ 1.05–1.10 (about 15.5:1–16.5:1 for petrol) allows more complete combustion of the fuel and uses less fuel overall. Many OEM engines run near stoich (λ = 1) for cruise due to emissions, but some will employ lean-burn modes or deceleration fuel cut-off to save fuel. Keep in mind that going too lean can cause misfires or surging, and dramatically increases NOx emissions. There is a trade-off: Bosch data shows maximum thermal efficiency (peak economy) occurs around 16.2:1–17.6:1 AFR, but in practice engines may not run smoothly at such extreme lean mixtures except under very light load.

Emissions requirements heavily influence AFR in production cars. The catalytic converter is most effective around stoichiometry, so manufacturers keep the AFR ~14.7:1 during most normal driving. However, no single AFR optimises all emissions; at an AFR of 14.7:1 (λ = 1.0), oxides of nitrogen (NOx) peak, while hydrocarbons and carbon monoxide (CO) increase substantially as the mixture becomes richer. Tuning involves finding an AFR that meets the specific goal you are looking to achieve. For power tuning, you’ll sacrifice some fuel economy and emit more CO/HC with a richer mix. For a more economical tune, you might accept higher NOx to gain MPG by running lean. It’s all about context and tuning priorities. The table below summarises typical target AFRs for naturally aspirated (NA) vs. forced induction (FI) petrol engines, as well as E85 ethanol fuel:

Note: E85 AFR values above are numerically lower because E85’s stoich is different. The lambda values in parentheses for E85 correspond to the same relative richness as the petrol values. In practice, focus on hitting the right λ in each load zone. At idle and low load, engines generally run near λ = 1 for smooth combustion and emissions. During cruise, a tuner can lean out an NA engine for efficiency, whereas many turbo engines stick close to stoich to avoid surge or turbo spool issues at light throttle. At WOT, the mixture is made richer for cooling and knock resistance. Critical in turbo or supercharged setups. Factory forced-induction cars often run excessively rich (sometimes ~10:1 AFR) at full throttle as a safeguard. Although that ensures a safety buffer (in case of high intake temperatures or slight fuel flow issues), it also means there’s power left on the table. An experienced tuner will lean out such overly rich maps to an optimal-but-safe AFR, gaining power while still staying well under the detonation threshold.

Tuning Process: Step-by-Step

Achieving the ideal AFR across the engine’s operating range requires a methodical approach. Below is a step-by-step tuning process, which is applicable for both tuning a modern ECU and re-jetting a carburettor. The best results are found with a healthy engine and proper equipment, and iteration ensures you home in on the perfect tune safely. This is why preparation is of utmost importance.

Preparation & Baseline Logging

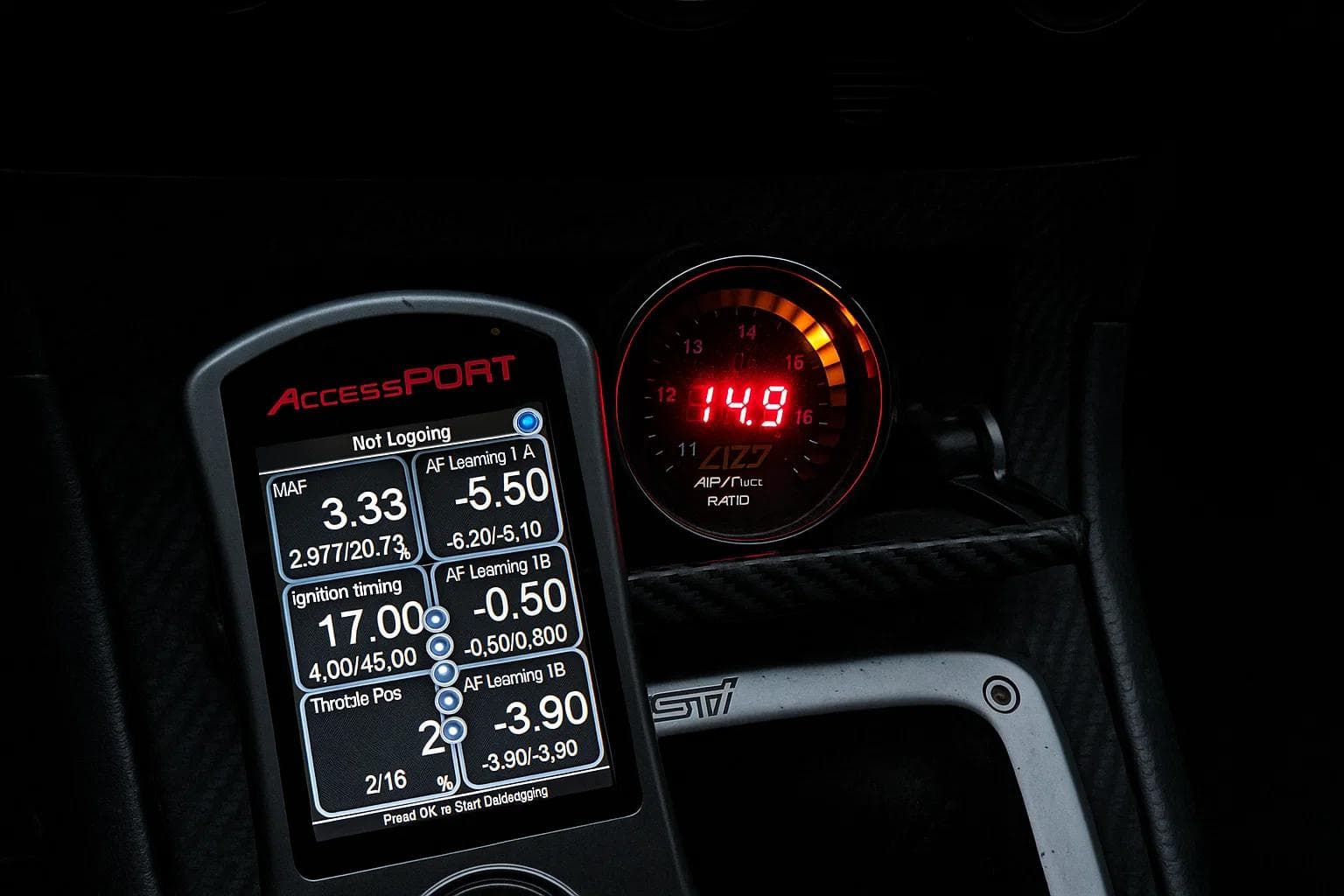

Before making any changes, ensure the engine is in good mechanical condition and you have the right tools on hand. Install a good quality wideband O₂ sensor (with datalogging capability) if the vehicle doesn’t already have one. Verify fuel pressure, ignition components, and eliminate vacuum or exhaust leaks. Mechanical issues will skew AFR readings and cannot be fixed via tuning. It’s wise to have fresh spark plugs and a clean air filter so that baseline measurements are accurate.

With the car fully warmed up, record baseline AFR data. Connect your tuning software or data logger and log parameters at idle, various cruise conditions, and a full-throttle run (if safe). For EFI systems, also note fuel trim values and sensor readings. The goal here is to map out where the current AFR stands relative to where it ideally should be. For example, you might find the engine idles at 13:1 (rich) or that it leans out to 13.5:1 at high RPM when you expected 12.5:1. Identifying these discrepancies is essential. In this phase, you are not tuning yet, only gathering intel. If anything looks dangerously lean (say AFR greater than 13:1 at WOT on a turbo engine), address it cautiously in the next steps; but if the engine is running reasonably without knock, proceed to setting targets.

Target Setting by Load Zone (Idle, Cruise, WOT)

Establish clear AFR (or lambda) targets for each load and RPM zone before you make adjustments. These targets depend on your goals (power vs economy vs safety) and the engine’s configuration. Use the guidelines from the earlier table as a starting point. For instance:

• Idle: Target around stoichiometric (λ ≈ 1.0) for a stable idle and complete burn. Some big-cam engines may idle smoother a bit rich (e.g. ~13.5:1), but generally you’ll aim near 14.7:1 for petrol.
• Cruise & light throttle: If fuel economy is a goal, aim for a leaner-than-stoich AFR in the cruise cells (maybe ~15.5:1 for NA petrol) as long as the engine runs smoothly. For many builds, sticking close to 14.7:1 at cruise provides a good balance of efficiency and drivability, especially in fuel-injected engines or any setup with emission control systems.
• WOT & high load: This is where tuning gets critical. Decide on a rich target that will maximise safe torque. NA engines commonly target ~12.5:1; forced-induction might target ~11.8:1 to start. If using ethanol blends, think in lambda (e.g. λ 0.80–0.85). The exact best AFR can be fine-tuned on a dyno for max torque, but starting slightly richer provides a safety cushion. Always err on the side of caution initially; it’s safer to start rich and lean it out for power than vice versa.

If your ECU or tuning platform allows, set up a target AFR table aligned with these goals. Some modern ECUs use closed-loop fuel control to hit a target lambda map, which can greatly speed up tuning once the targets are defined. In other cases, you’ll be adjusting fueling directly and using your targets only as a reference. Either way, writing down or programming the intended AFR for each region of the map will guide your adjustments and help you track progress.

Fuel Map Adjustments (ECU or Carburettor)

Now comes the core of AFR tuning: adjusting the fuel delivery to hit your targets. How you do this depends on the system:

• ECU tuning (EFI): You’ll modify fuel map values (for example, injector pulse width, fuel mass, or VE coefficients). The principle is to correct each area by comparing the actual AFR (from your logs) to the target AFR. For example, at 3000 RPM / mid-throttle, your log shows AFR 13.0:1, but your target is 14.0:1 (i.e. it’s running rich). The fuel table value in that cell needs to be reduced. A common technique is to scale the fuel value by the ratio of measured AFR to target AFR. In this case, new_value = current_value × (13.0/14.0) ≈ 0.93 – roughly a 7% reduction in fuel. Conversely, if you logged a lean 15.0:1 when targeting 14.0:1, you’d increase that cell’s value by 14.0/15.0 (~+7%) to add fuel. Apply these corrections across the map gradually. After each round of adjustments, re-run the engine and log AFR to see if the cells now meet the target. Many aftermarket ECUs and software tools can automate this “fuel trim” calculation (popular aftermarket tuning software often includes auto-tune features, but manual verification is still essential). It’s important to understand what the numbers mean. Always smooth your fuel maps after making changes to avoid abrupt jumps between neighbouring cells.
• Carburettor tuning: Adjusting a carb is less precise by nature, but the goals remain the same. Use the baseline data (and spark plug readings) to identify rich/lean conditions in different circuits. Then change jets, needles, or mixture screws accordingly. For instance, if WOT is lean (greyish or white spark plug insulators and a high AFR reading), step up the main jet size to supply more fuel. If cruise is rich (sooty plugs, low AFR), lean out the primary circuit or use a thinner metering rod. Make one change at a time and re-test. It’s crucial to run the engine under load after each change to see the effect; a carb might behave differently on the road than when revved in neutral. Wideband feedback is immensely helpful for carb tuning too. It takes the guesswork out of mixture adjustments by providing real-time AFR data.

Throughout the adjustment process, be patient and methodical. Avoid large jumps in fuel values. Drastically altering a fuel table often overshoots and creates new problems. Make incremental changes and sneak up on your targets. It may be tempting to correct a 15:1 AFR down to 13:1 in one go, but doing so risks overshooting and ending up far too rich. Instead, iterate in steps (perhaps halfway to the error) and converge gradually on the target. And always keep an ear out for knock or misfire as you adjust mixtures.

If you hear pinging at any point, enrich the mixture or retard timing immediately in that region before proceeding.

Dyno Verification & Real-World Testing

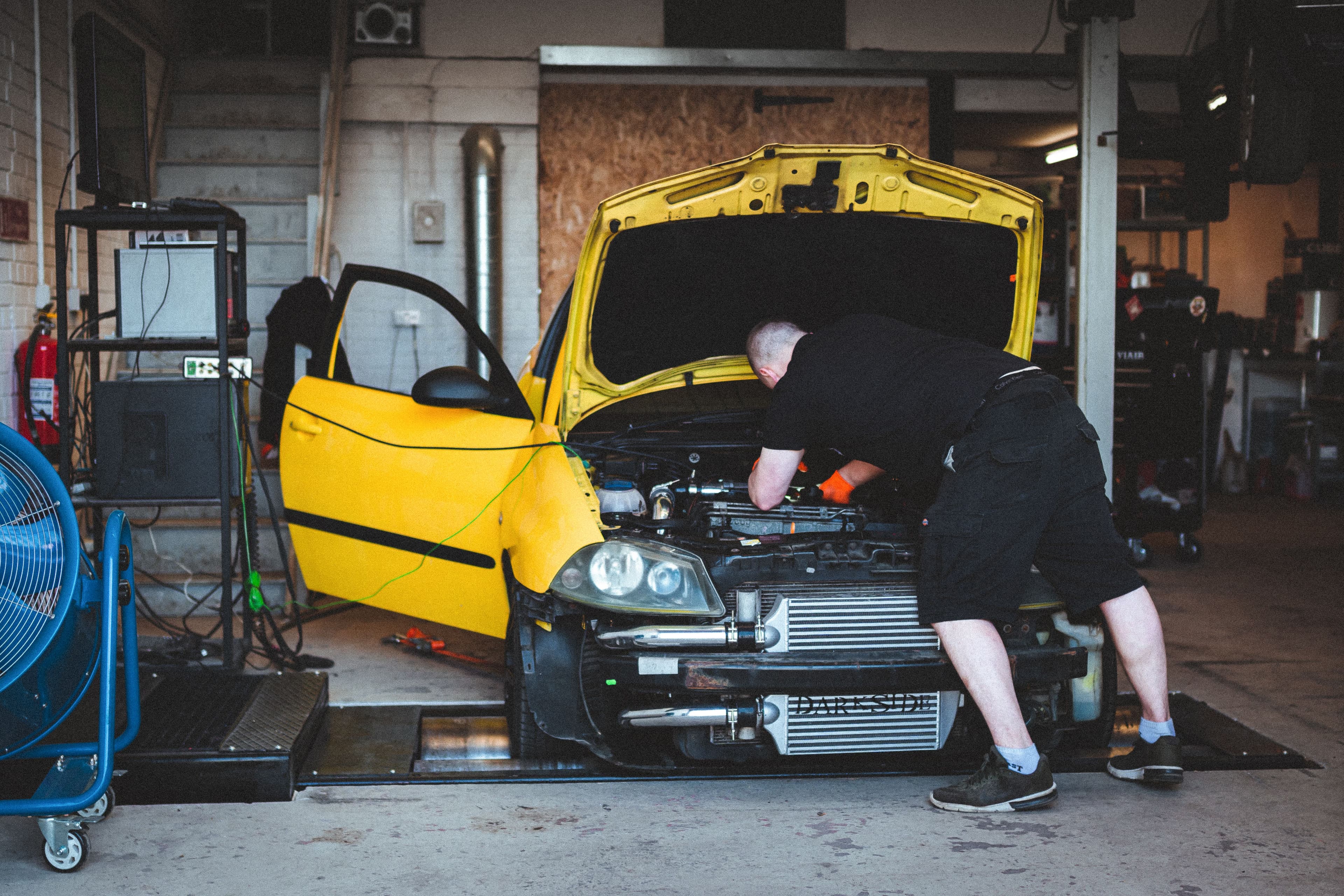

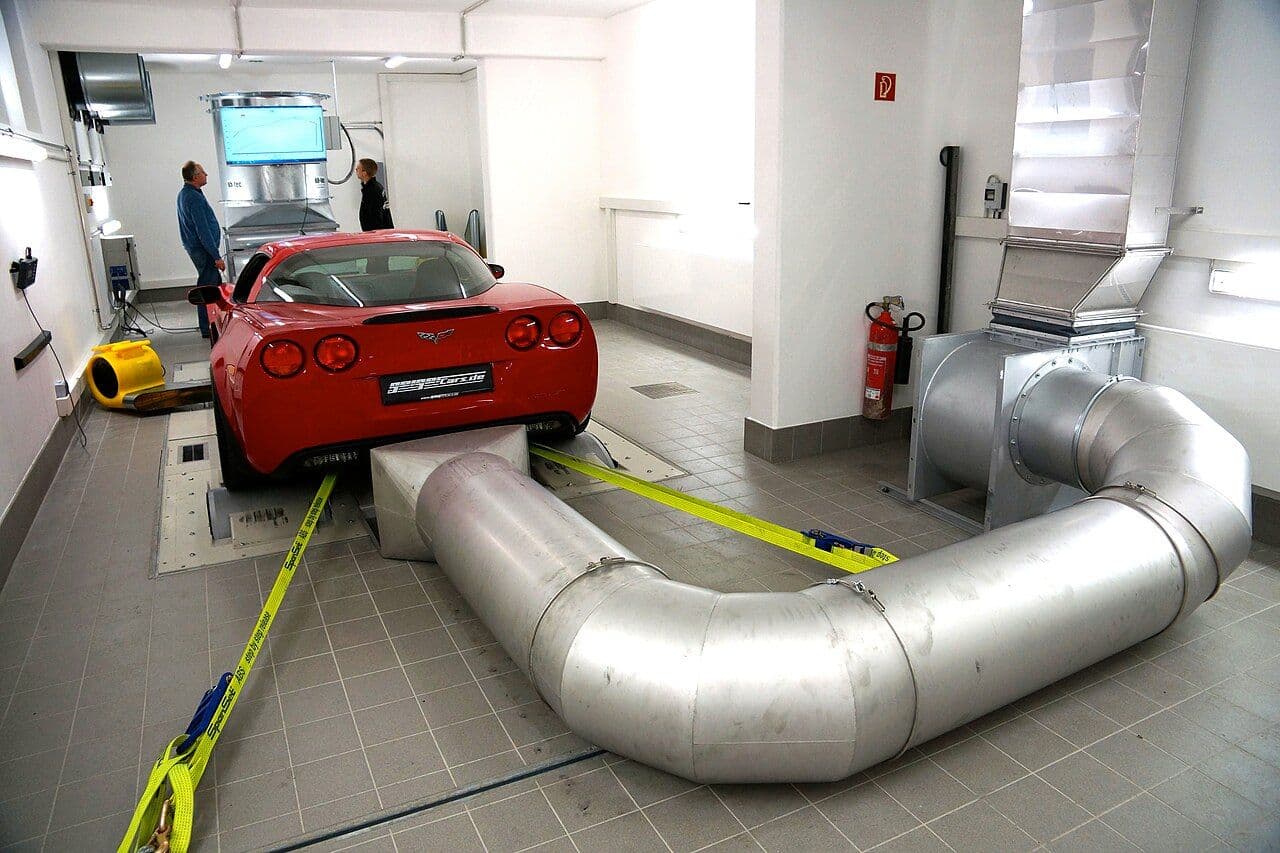

After you’ve adjusted the fuel maps to align with your AFR targets, it’s time to verify the results. An engine dynamometer or rolling road is the ideal environment to safely test wide-open throttle (WOT) and high-load conditions. On the dyno, do a sweep or step test through the rev range while monitoring AFR, power output, and engine vitals. Confirm that the AFR stays near your targets during the run. If the engine makes best power at a slightly different AFR than expected, you can fine-tune accordingly (for example, you might find peak torque occurs at 12.8:1 instead of 12.5:1, so you lean those cells slightly). Also watch for signs of detonation or high exhaust gas temperatures; if encountered, richen the mix or reduce timing in that area even if AFR seems on target.

Beyond achieving numbers, dyno tuning lets you evaluate drivability under load. Without drivability, what's the point? Check transient AFR behaviour: when stabbing the throttle, does the mixture momentarily lean out? If so, adjust acceleration enrichment or transient fueling in the ECU. For carburettors, a lean bog might indicate the need for a larger accelerator pump shot or a different pump cam. Use the controlled environment to dial in these transient responses because they can be harder to safely troubleshoot on the street.

Once dyno results are satisfactory, always conduct a road test to determine what it's like in a real-world drive. Engines can behave differently with real aerodynamic load, varied throttle inputs, and longer run times. I'd recommend taking the car on varied routes (city traffic, highway cruise, uphill pulls) while logging AFR. Pay attention to cruise AFR during steady highway driving, AFR during extended high-load pulls, and how the engine responds after heat soak (e.g. sitting idle then accelerating). This is your chance to catch issues like a lean tip-in stumble that didn’t show up on the dyno, or heat-related richness/leanness after the engine bay gets hot. If your vehicle has closed-loop modes (like an O₂ sensor trimming fuel during cruise), observe the long-term fuel trims; small corrections (±5%) are fine, but large corrections suggest your base map might need adjustment in those areas.

Make any minor adjustments as needed from the street data, but avoid the temptation to endlessly chase perfection. There will always be some variance in AFR with changing weather, fuel quality, etc. The goal is a tune that is consistent and safe under all typical conditions. After real-world validation, you should have confidence that the engine will hit the commanded AFR targets whether you’re at the track or on a cross-country road trip.

Safety Margins & Iterative Refinement

A seasoned tuner knows that leaving some safety margin is essential for longevity. Pushing an AFR to the absolute lean limit for maximum power might net a few extra horses, but it can put the engine one bad tank of fuel or one hot day away from destructive knock. To build in a safety cushion, consider richening the AFR slightly from the edge of performance. For example, if a turbo motor shows no knock at 12.2:1, you might still tune it to 11.8:1 so that there’s buffer when the intake air temperature rises or fuel quality drops. Likewise, a naturally aspirated engine that got its best dyno pull at 13.3:1 might be tuned to 13.0:1 for everyday use. The small sacrifice in peak power is worth the added reliability.

Iterative refinement is the process of revisiting the tune over time. After some miles or track sessions, review your logs to see if AFRs are staying put. Engines can “drift” as components age or if carbon builds up. For EFI, the ECU’s long-term fuel trims can reveal this drift. If you see trims creeping positive or negative consistently, update the base map to compensate. It’s also smart to re-check AFR in different seasons; a tune done on a cold winter day might run slightly leaner in hot summer weather (due to air density changes), even with proper air temperature compensation tables. Make incremental adjustments as necessary to keep the AFR dialled in year-round.

Every change in hardware should prompt a re-check of AFR as well. New intakes, exhausts, cams, or especially turbos/injectors will all alter the breathing or fueling of the engine. Anytime you modify the airflow or fuel delivery capacity, perform a fresh series of logs and tune adjustments as needed. This iterative mindset ensures your AFR tuning remains optimal as the engine evolves. This is a reminder for those who modify an engine to get it tuned (ideally not a flash tune) to reap the benefits if you want to gain maximum performance while retaining drivability.

Fuel-Specific AFR Tuning Adjustments

Different fuels demand different AFR strategies. The chemistry of the fuel affects its stoichiometry, burn speed, knock resistance, and even how your sensors read. In this section, we highlight adjustments and considerations when tuning AFR for various fuels beyond normal pump petrol. Always double-check stoichiometric values and recommended ranges for any new fuel you tune, and whenever possible, tune in lambda for accuracy. For a broader look at how alternative fuels (like ethanol blends, biofuels, etc.) can enhance performance while reducing emissions, see how sustainable fuels can improve engine performance.

E85 and Ethanol Blends

Tuning for E85 (85% ethanol fuel) requires supplying significantly more fuel compared to petrol. As noted earlier, E85’s stoichiometric AFR is about 9.8:1 vs. petrol’s 14.7:1, roughly 33% more fuel by mass for the same amount of air. In practice, if you're converting a petrol tune to E85, you’ll roughly need to multiply the entire fuel map by ~1.4 (or adjust injector scaling accordingly) to richen the mixture for the new fuel. I would highly recommend using a flex-fuel sensor or dedicated E85 calibration. This lets the ECU automatically blend between petrol and ethanol maps based on actual ethanol percentage. Without a sensor, you must manually retune for E85 and revert maps when switching back to petrol. If you're not syphoning all of the fuel out before re-tuning, I'd strongly recommend calculating the ethanol content in your tank so that the tune matches the fuel it was calibrated for. Otherwise, you risk significant damage to your engine. Luckily for you, we made one.

On E85, target lambda values for power are similar to petrol (e.g. λ ~0.80 at WOT), but remember that will show as an AFR of ~7.8:1 on an E85-calibrated scale. Many aftermarket ECUs allow you to input the fuel’s stoichiometric ratio, which will make all AFR readings and targets adjust accordingly. If not, it’s safest to work in lambda to avoid any mathematical errors. Another upside of E85 is its high octane rating (commonly 100–105 AKI) and cooling effect, allowing more aggressive ignition timing and boost. This means you might achieve MBT (maximum brake torque) at a slightly leaner AFR than on petrol without knock, but don’t assume you can run leaner just because it’s E85. The best AFR for power is still around λ 0.80–0.85 in most cases, it’s just that knock is less likely to intervene. Use the extra detonation resistance to dial in more timing or boost, rather than to dangerously lean out the mixture.

One special consideration is cold start and warm-up on ethanol blends. Ethanol’s low volatility in cold weather can cause very lean cold starts if not compensated for. You’ll likely need to enrich cranking fuel and warm-up enrichment significantly for E85. Expect cranking AFRs to be in the 5:1–7:1 range (extremely rich) just to get a cold E85 engine to fire up. As the engine warms, the additional fuel can be tapered out. Cold drivability will also suffer if you don’t add extra fuel during warm-up, so be prepared for some tuning trial-and-error with E85 in winter conditions.

Race Fuels (oxygenated, leaded)

When dealing with specialist race fuels, you must account for two main factors: differing stoichiometric ratios and sensor compatibility. Many race fuels are oxygenated, containing ethanol, methanol, MTBE or other oxygen-bearing compounds, which effectively means they require more fuel (richer AFR) for the same air mass. Always obtain the stoichiometric AFR or recommended jetting change from the fuel manufacturer. For example, VP’s Q16 (an oxygenated race gasoline) has ~10% oxygen content and needs roughly 4–6% more fuel than non-oxygenated race gas. If you tuned a car at 14.7:1 on pump petrol and then filled with Q16 without adjusting the map, it would run lean due to the fuel’s additional oxygen. The fix is to enrich the mixture so that λ is correct for that fuel’s chemistry.

Leaded race fuels (such as VP C16 or Sunoco 110) typically have stoichiometric ratios similar to regular petrol (~14.7:1), so AFR numbers themselves don’t shift. However, the presence of lead creates another issue: sensor contamination. Leaded fuel will rapidly poison oxygen sensors (and catalytic converters). When tuning with leaded fuel, it’s common to see wideband readings become erratic or biased after relatively little run time. To mitigate this, use a fresh O₂ sensor for tuning and remove it afterwards if the vehicle will be running leaded fuel continuously (some racers tune with the sensor, then plug the bung for competition). Also, set your wideband controller to the appropriate fuel type if that option exists, so it knows how to interpret the exhaust gas.

On the tuning side, treat race fuel like any other fuel with respect to AFR targets. High-octane unleaded fuels might let you push a tad leaner at high load than pump gas since knock is less likely, but usually the optimal AFR for power won’t shift much. If unsure, err rich and use the dyno to find when power stops increasing (or drops) as you enrich beyond the optimum. Remember that many race fuels allow engines to run at higher boost or compression, which raises cylinder pressures and heat. You may end up targeting a richer AFR simply to control these factors. In short: adjust your maps for the new fuel’s stoich, monitor your wideband (or λ readings) carefully, especially if sensors may be affected, and let the engine tell you what AFR it wants for peak performance.

Methanol Overview (brief)

Methanol (M100) is a fuel with extreme properties that demand special attention. With a stoichiometric AFR near 6.4:1, methanol needs more than twice the fuel flow of gasoline for a given air mass. Fuel system components (carb jets, injectors, pumps) must be sized very large to deliver enough volume. When tuning in terms of AFR, the numbers will look very rich, often in the 4:1–5:1 range at WOT for best power. It’s highly advisable to tune methanol-fueled engines in lambda or using a “gasoline equivalent” AFR scale, because seeing 4.5:1 AFR on a normal petrol gauge can be disconcerting despite being normal for methanol. Wideband O₂ sensors can work with methanol, but you must calibrate the controller for methanol’s characteristics or simply monitor lambda (λ).

Methanol has a very high octane rating and a huge cooling effect (high latent heat of vaporisation), which means detonation is usually not the limiting factor. You’ll often run into lean misfire or exhaust temperature limits before knock. Peak power lambda for methanol is typically a bit richer in relative terms (around λ 0.75) than for petrol, because extra fuel provides significant cooling in the combustion chamber. Drag racing teams running methanol often go richer than the ideal λ for torque to keep engine internals cool over a run. That said, too rich will eventually quench the flame, so there is still a balance to find.

From a process standpoint, tuning a methanol engine follows the same basic steps: start with conservative (rich) AFR targets, use the wideband (configured for methanol or λ) to adjust fueling towards the desired λ, and watch for misfire or incomplete combustion as you lean it out. Safety margins are especially important. If you run methanol too lean, exhaust gas temperatures will skyrocket, and components can overheat quickly. Because methanol is corrosive, you should also take maintenance steps like flushing the fuel system with petrol or using top-end lubricant additives to protect fuel system components after running methanol. Unless you specifically need it for a racing application, methanol tuning is an advanced undertaking that requires diligent monitoring.

Diesel AFR Characteristics (brief)

I'll only touch on diesel briefly, because it is worth noting some differences.

Unlike gasoline engines, diesel engines always operate with excess air (λ > 1) except at the extreme limit of fueling. There is no throttle plate in a diesel; power is controlled by the amount of fuel injected, and the air-fuel ratio can vary widely. At idle or low load, a diesel might run at λ = 4–5 (extremely lean: lots of air, very little fuel). Even at full load, a well-tuned turbo diesel will be kept at λ ~1.2–1.5 (roughly 15:1–17:1 AFR). Pushing a diesel richer than about 15:1 AFR (λ ≈ 1.0) will result in black smoke (soot) as there’s not enough air to burn all the fuel. It will also drive up Exhaust Gas Temperature (EGT) dramatically. So the tuning “AFR limit” on a diesel is usually defined by smoke and EGT rather than knock.

When tuning a diesel for power, the strategy is to add fuel until you start to see the onset of smoke or until EGT reaches a safe threshold, then back off slightly. If more power is desired beyond that, you need to increase boost (more air) to bring the AFR back into a leaner range, and then add more fuel again. It’s a balancing act. Many modern ECUs will let you log lambda on a diesel, but note that the numbers are much leaner than a petrol tuner might be used to. Don’t be alarmed at AFRs like 25:1 during light throttle; that’s normal. Focus on the full-load AFR and EGT. For a street diesel, keeping lambda ≥ ~1.2 at peak power is a good rule of thumb. This provides a margin to avoid excessive smoke and high cylinder temperatures. High-performance diesels (e.g. competition pulling trucks) might dip closer to λ 1.1 or even 1.0 briefly, but they accept heavy smoke and higher engine stress in exchange for maximum power.

In short, AFR tuning on diesels is about not over-fueling for the available air. It’s a different method: you’re usually tuning limits (don’t go richer than X) rather than hitting a precise AFR target everywhere. As you modify a diesel (bigger turbo, larger injectors, etc.), always verify that your AFR under peak load stays in a safe zone.

Critical AFR Mistakes to Avoid

When optimising AFR, certain pitfalls can jeopardise your engine or impede your results. Steer clear of these common mistakes:

• Tuning without a wideband: Adjusting fuel blindly or using only a narrowband O₂ sensor is significantly more challenging. A wideband provides the accurate AFR data you need; without it, you’re essentially guessing.
• Running lean under load: Pushing for overly lean AFR at WOT or high boost to “find power” can quickly lead to detonation and burnt pistons. Always ensure rich enough mixtures (low λ) when the engine is heavily loaded.
• Over-rich tuning: More fuel isn’t always safer. AFRs richer than about 10:1 on petrol (λ < ~0.7) can misfire, foul plugs, wash down cylinder walls, and actually reduce power. Use fuel strategically, not excessively.
• Ignoring fuel type differences: A tune set for gasoline AFR values will not translate to E85 or other fuels. Failing to adjust for a fuel’s stoichiometric ratio (or not using lambda) can result in dangerously lean conditions. Always recalibrate targets when you switch fuels.
• Huge map changes in one go: Altering fuel tables dramatically often overshoots the mark. You might fix one problem and create another. Make incremental changes and creep up on your targets.
• Not testing in real conditions: It’s a mistake to tune exclusively on a dyno or only at one temperature and call it done. Elevation, ambient heat, and driving style affect AFR. Verify your tune with road testing, heat-soak cycles, and different weather to ensure it doesn't stray into unsafe parameters.
• Failing to leave a margin: Treating your target AFR as a hard minimum with zero room for error is risky. Components age, fuel quality varies, and sensors have slight drift. If you tune right on the edge (too lean), a small change can push the engine into danger. Build a buffer with slightly richer AFRs as insurance.

Final Tuning Principles

Here are the key best practices that professional tuners follow for AFR optimisation:

• Use quality measurement equipment: Rely on a calibrated wideband O₂ sensor for all AFR tuning work.
• Make small, deliberate adjustments: Change one thing at a time and log the outcome. Controlled, iterative tuning prevents confusion and overshooting.
• Tune with lambda for flexibility: Whenever possible, work in lambda units. This avoids mistakes when dealing with different fuels and provides a universal scale for AFR targets.
• Verify on dyno and on road: An AFR tune isn’t complete until it’s proven under controlled dyno pulls and real-world driving. Each environment catches issues that the other might miss.
• Ensure the fuel system can keep up: Your fuel pump, lines, and injectors must support the required flow. A weak fuel system will cause lean-out at high demand, even if the map is correct.
• Prioritise engine safety: For high-load tuning, err on the side of richer (lower λ) mixtures and retard timing if needed. Protect against knock and heat. Remember, a blown engine produces zero power.
• Keep detailed logs: Track every adjustment and the resulting AFR. Good documentation helps with troubleshooting and refines your tuning approach over time.
• Holistic approach: AFR tuning must align with ignition timing, boost, and other adjustments. Even race vs street engines show that all components work in unison. Always stay within the engine’s mechanical limits.
