If you’re looking for a little more from your engine tune, water methanol injection is one of the most effective ways to increase knock resistance. It gives you cooler intake air under boost, enabling the engine to hold ignition timing when heat and load rise. A properly configured water methanol injection kit is very effective if you don’t have premium fuel where knock-resistant qualities are poor, or if you’re looking for that little extra cooling property enabling you to run more aggressive ignition timing.
What Is Water Methanol Injection
Don’t get this confused with standalone methanol fuel. The two are not the same when combined with water, nor are they used in the same way.

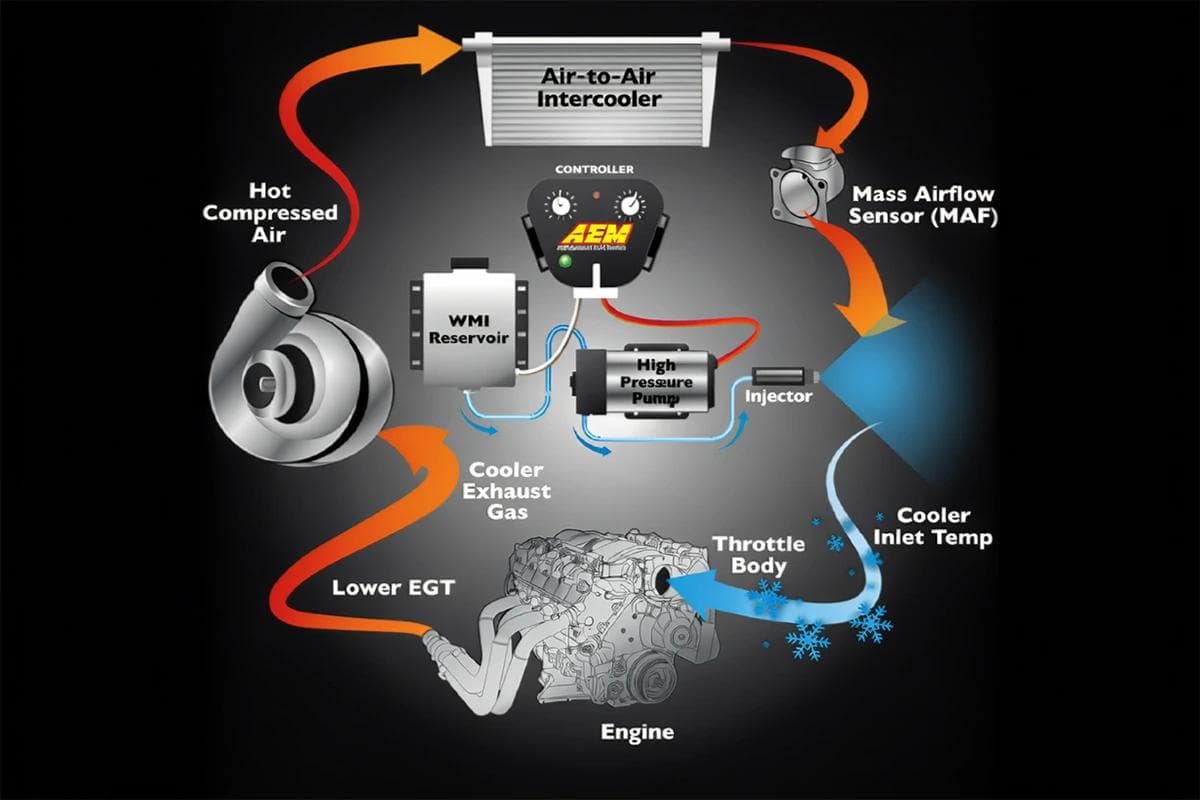

A water-methanol injection system sprays a fine mist of water and methanol into the intake air stream under load. On most petrol turbo setups, it goes into the charge pipe after the intercooler, or just before the throttle body. Some builds inject into each runner to improve cylinder-to-cylinder balance.
Water does most of the cooling as it evaporates. Methanol adds knock resistance and also behaves like extra fuel, which can shift lambda and trims if you do not plan for it. This is why a water methanol injection kit is not just hardware. If it were, it would have very little benefit. The benefits of a WMI system are brought to life by the engine tuner.
Why It Improves Knock Resistance
Knock happens when the unburnt part of the mixture, the end gas, auto-ignites under heat and pressure. When that risk rises, the ECU reacts. Timing comes out. Sometimes boost comes down. Sometimes the mixture goes richer.
Water helps because it absorbs heat as it changes from liquid to vapour. That cooling reduces charge temperature and lowers the tendency for end gas to auto-ignite. Methanol helps because it evaporates easily, adds more cooling, and increases resistance to knock compared with straight pump petrol, while also contributing fuel mass.
The result gives the tuner knock resistance, similar to running a more premium (knock-resistant) fuel. You can often hold more ignition advance where the engine used to pull timing, or run more boost while keeping ignition stable.
It is important to note that WMI is no substitute for good-quality fuel. Your fuel is the foundation. Substituting this for WMI is much more maintenance-intensive and results in a worse outcome.
WMI Ignition Timing
This is where the results come from. The calibration dictates whether you use it safely and consistently.
Log A Baseline
Do three consistent pulls in the same gear with injection off. Record intake air temperature, ignition advance, any timing correction channels, knock activity, lambda, boost, and fuel trims.
Switch Injection On, Change Nothing
Repeat the same pulls with the same ignition tables. Look for lower intake temperatures under high load and reduced timing correction, where the engine normally detects knock. If those changes are not clear, fix the system before touching timing.
Add Timing Only Where It Matters
Add ignition advance in one-degree steps in the specific high-load cells where knock correction would usually appear. Start around peak torque, then move through the upper rpm range. After each change, validate it with logs and torque.
Stop When Torque Stops Rising
You will reach a point where more timing does not add torque. That is your stop line. Past it, you usually gain sensitivity to fuel quality and heat, not usable power.
What You Should See in The Logs
A good result usually looks like this:
- Intake temperature under boost drops and stays lower through repeated pulls
- Ignition advance becomes more stable in the same load and rpm range
- Timing correction activity reduces or disappears in the problem areas
- The engine makes repeatable torque rather than one strong run and one weak run
If you do not see those patterns, do not chase bigger numbers. Ensure stability and consistency first.
Fuelling Changes to Consider
Methanol alone is still a fuel. That’s important to remember.
When injection comes in, lambda can move richer, and fuel trims can shift as the ECU tries to correct. If you ignore that, you can end up with a tune that looks fine in one pull and drifts in another.
A clean approach is:
- Log lambda with injection off and on at the same boost and rpm
- Decide whether you want that richer mixture under high load, or if you want to pull petrol fuel to maintain the same target
- If your ECU supports it, tie compensation to boost, injector duty, or an injection status input
- Recheck trims after changes, because stable trims tend to match stable delivery
Distribution matters too. If one cylinder runs hotter or leaner, it can still knock early and force timing back for the whole engine. Runner injection can help on some builds, but it adds complexity, so it needs a clear reason.

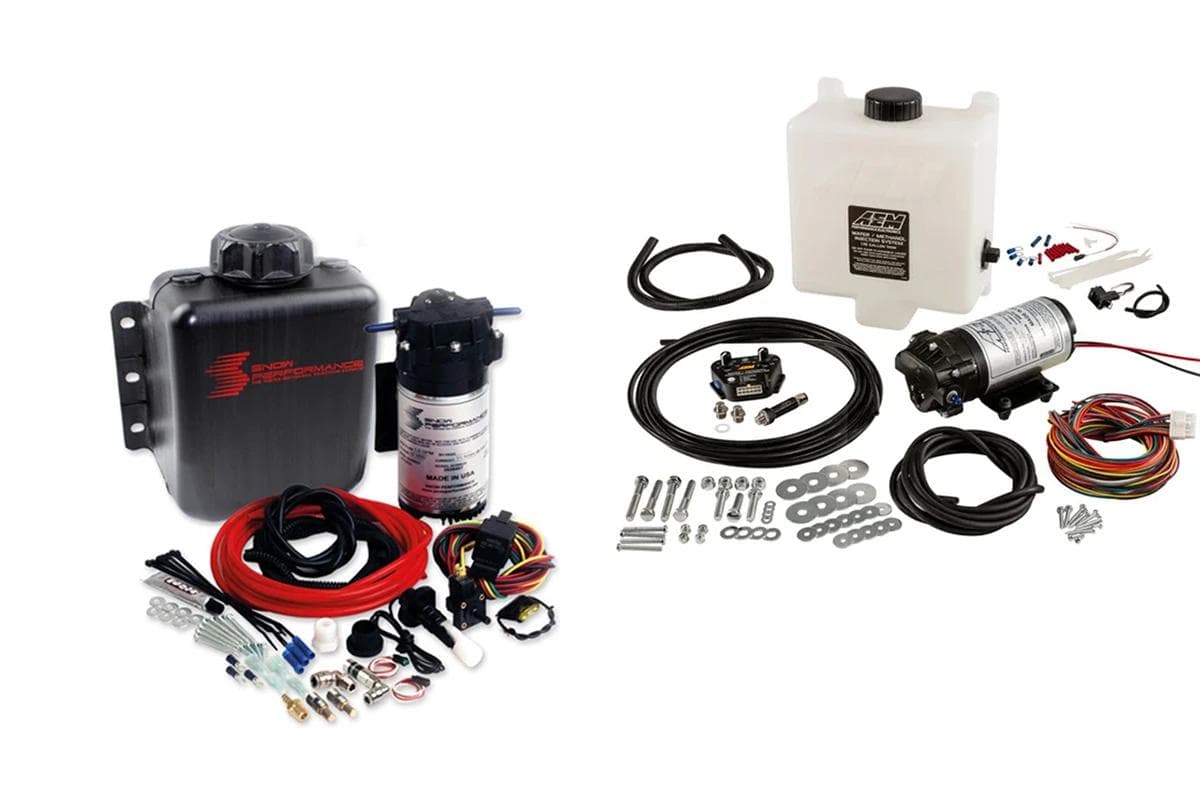

Choosing A Water Methanol Injection Kit
Searches for a water methanol injection kit bring up everything from proven systems to cheap bundles. The difference is not just in the quality of feel. It is repeatability, and repeatability is what lets you tune ignition timing with confidence.
A kit worth tuning around usually includes:
- A pump that holds pressure under sustained load
- A solenoid that prevents siphoning at vacuum
- A controller that ramps flow with boost or injector duty
- Nozzles with clear flow data at a known pressure
- A filter and check valve that does not restrict flow

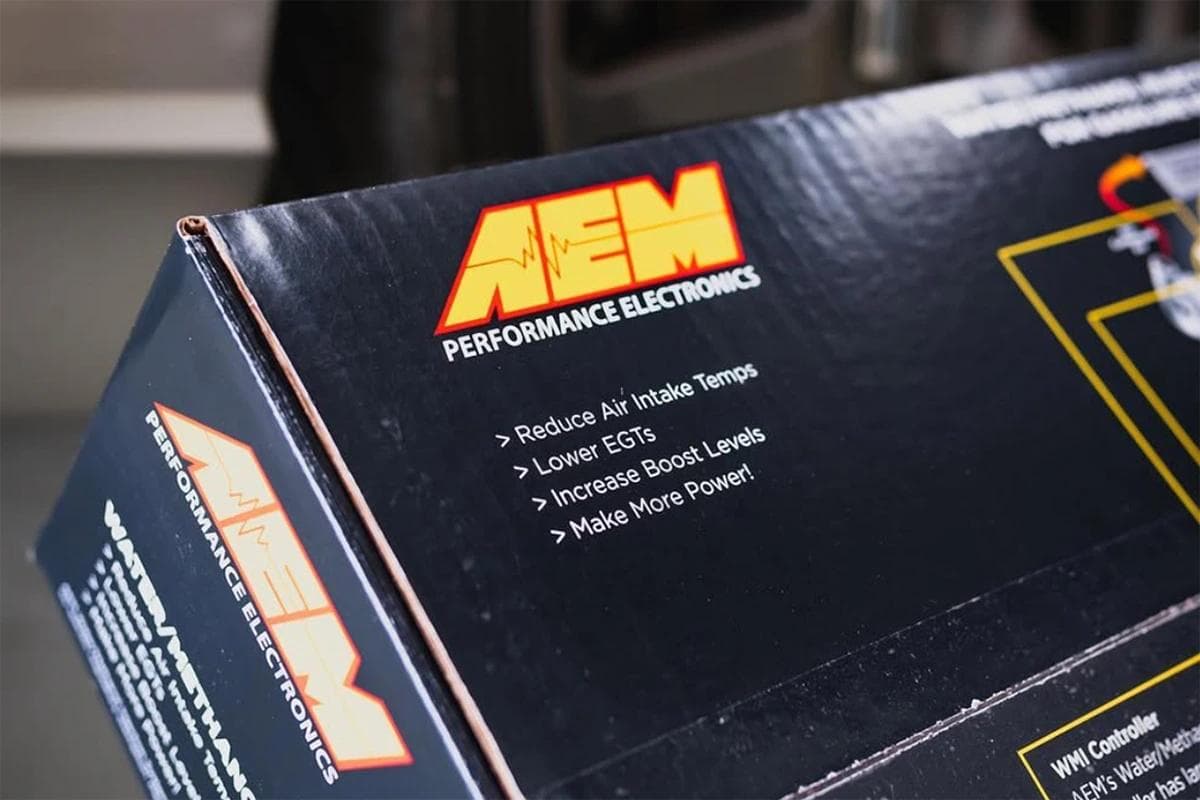

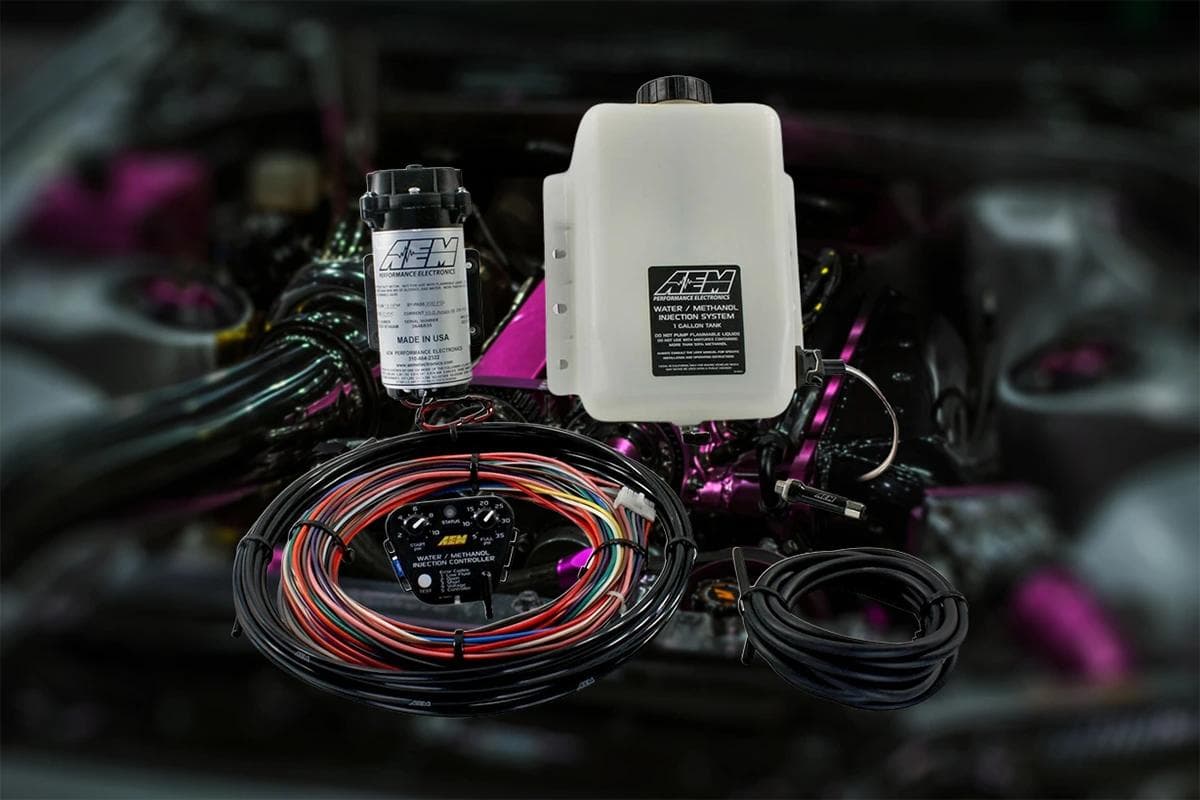

Snow water methanol injection systems and the Snow Performance water methanol injection kit range are popular partly because there is plenty of real-world experience behind them. AEM water methanol injection kit options are also common, often chosen for straightforward control and easy access to parts. Whichever kit you fit, focus on delivery stability, control behaviour, and what happens if the system stops flowing, because your calibration will rely on that.
I’d strongly advise not skimping on a WMI kit. It’ll be an expensive decision if it fails.
Water Methanol Injection Fluid Choices
Fluid choice changes cooling, fuelling effect, and consistency. That is why people search for water methanol injection fluid so often.
A 50 water, 50 methanol mix is a common starting point on street petrol builds because it balances cooling and knock resistance and tends to be predictable to tune. Higher water content leans into cooling. Higher methanol content leans into fuel contribution and can move lambda more.
Pick a mixture ratio. Your engine tune should be calibrated for that specific mixture. Keep it consistent when topping up. If you change the fluid ratio, you change the tune. If you want to keep it simple, buy it pre-mixed.
Tips For Reliable Ownership
A water-methanol injection system can be dependable, but it requires basic routine checks. The difference between hassle-free and headache.
- Check the tank level often, especially before hard driving
- Keep your fluid consistent, tune for one mix and stick to it
- Inspect hoses and fittings for damp spots, loose clamps, and rubbing points
- Clean or replace the filter on a sensible schedule (dependent on usage)
- Check the nozzle for deposits; even a partial blockage can change the flow
- Confirm it does not siphon at idle or cruise; the solenoid and check valve should prevent it
- Do an occasional log pull after a few weeks; timing stability tells you a lot
If you want one upgrade that supports long-term reliability, prioritise a failsafe strategy that the engine can react to. A warning light helps. A setup that can reduce boost or switch maps when flow drops helps far more.
Where To Inject and When to Spray

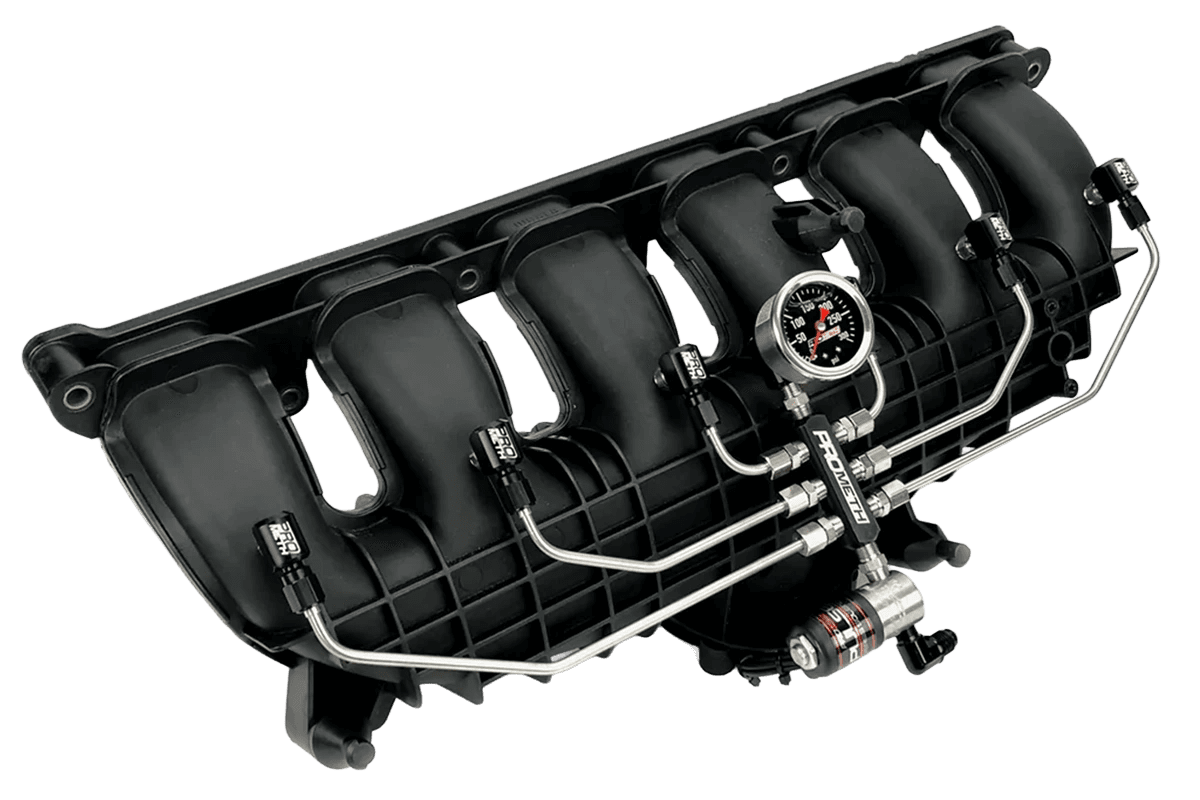

For most street builds, post-intercooler charge pipe injection is a strong starting point because it is simple and works well. Injecting just before the throttle body can also work, especially when packaging is tight. Runner injection can improve cylinder balance and is sometimes worth it on builds that are close to the edge.
Activation strategy matters as much as location. Avoid spraying at idle and light cruise. Start injection as load and boost climb, then ramp it in progressively so timing and lambda do not jump around.
Water Methanol Injection for Diesel
Water methanol injection for diesel engines has different goals. The search intent around water methanol injection, diesel and diesel water methanol injection is usually temperature control under load and cleaner combustion behaviour, not spark knock.
On diesel setups, injection is often used to reduce exhaust gas temperature under heavy load, support cleaner burn behaviour when fuelling is high, and add headroom for boost and fuel without pushing heat too far. A practical starting point is a water-heavy mix aimed at temperature control, progressive flow linked to boost and fuel rate, and careful logging of EGT, boost behaviour, and smoke control. Get stable behaviour first. Then chase power.
The Result You Should Aim For
Water methanol injection is only effective when you treat it as part of the package, not an add-on. The hardware creates the conditions. The calibration decides whether you gain ignition timing headroom, keep knock under control, and hold the same feel run after run.
If you take one thing from this, make it this. Prove the system is doing its job before you add timing. Log a baseline, switch injection on without changes, then advance in small steps only where the engine used to pull timing. Keep the fluid mix consistent, keep delivery stable, and the gains will look after themselves.
Is Water Methanol Injection Right for Your Build
If water methanol injection sounds like a good fit for your build, ask yourself what is actually limiting your tune. On a street car that runs on pump fuel, it makes the most sense when you regularly see timing pulled in warmer weather, after a few hard pulls, or when you are forced to run fuel that does not have good knock-resistant properties.
You get more consistency and often a little more headroom for ignition timing and boost, but you also take on a small routine: keeping the fluid topped up, checking the system, and treating it like part of the car rather than a one-time mod.
On track, the case is stronger because intake temps and heat soak are constant, so the cooling benefit can help you hold performance lap after lap, as long as you have a reliable kit, a proper failsafe strategy, and enough tank capacity for a full session. If your setup is already limited by turbo flow, fuel system capacity, or mechanical constraints, WMI will not fix that. Still, if your limiter is knock and temperature, it can be one of the most effective supporting mods you can add.
If your limiter is knock and temperature, WMI can be one of the most effective supporting mods you can add, but it is not a substitute for better fuel when premium is available. Think of it as a practical tool that adds cooling and consistency when conditions are working against you, not a fix for a weak foundation.
If you are willing to keep the fluid consistent, keep the tank topped up, and run a proper failsafe, it can help the engine hold its targets more reliably every time you lean on it.
