Introduction
If you understand Volumetric Efficiency, you can start to see where your engine might be leaving performance on the table. It’s a key concept in engine tuning, used by engineers and tuners to measure how much air actually enters the cylinder during the intake stroke compared to how much it could ideally hold based on its displacement.
I’ll break it down for you in engineering terms and provide some pointers on how you can improve the efficiency of your own engine to extract that extra bit of performance.
It’s not just about increasing power, but also about how efficiently your engine breathes and operates. The concept is simple on the surface, but as you look deeper into airflow dynamics and tuning, it becomes more advanced. Still, it’s worth learning if you’re aiming to improve your engine’s performance or become a more capable tuner or engineer.
What is Volumetric Efficiency?

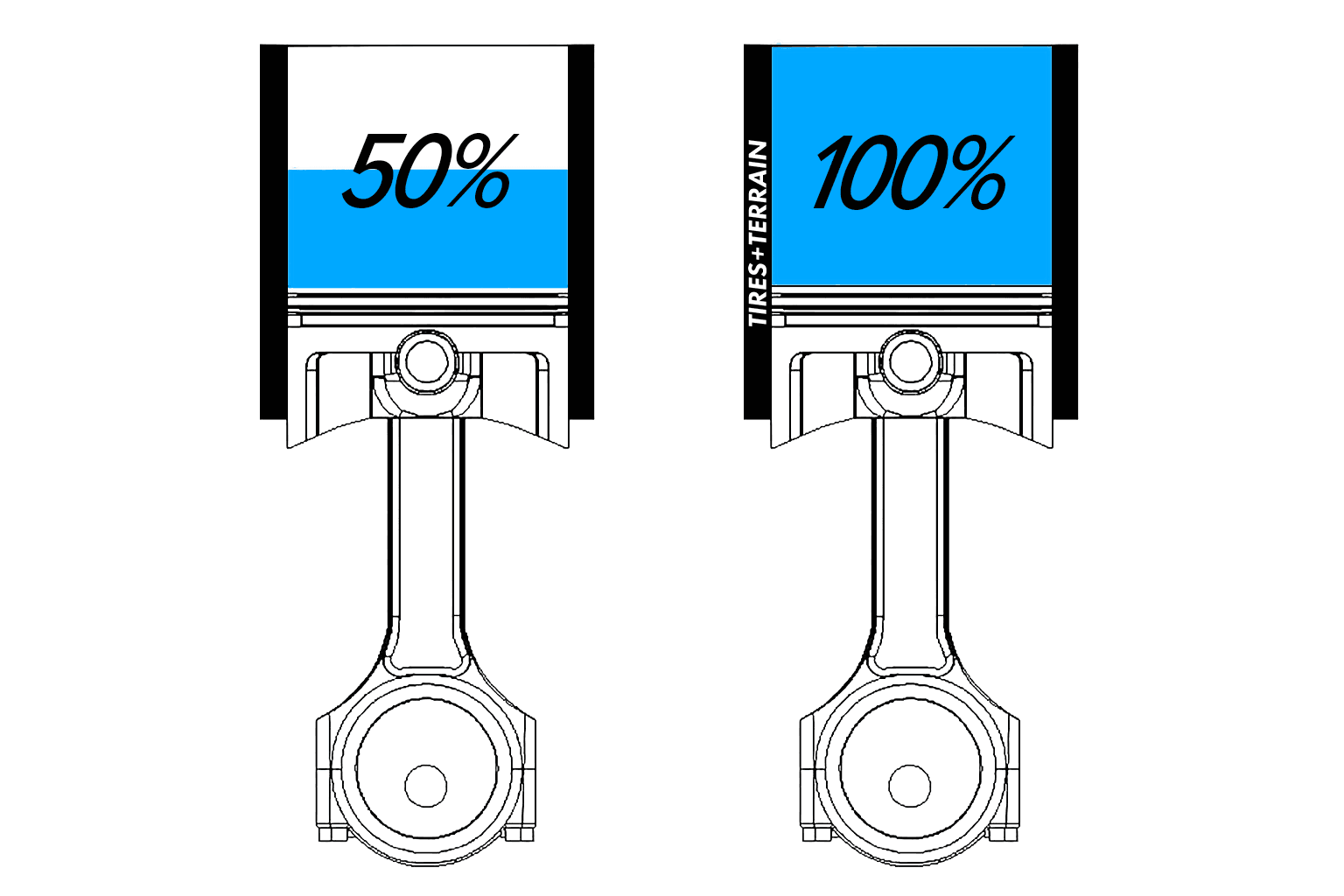

Volumetric Efficiency (often referred to as VE) is a measure of how effectively an engine breathes. It compares the actual amount of air an engine draws into its cylinders to the theoretical maximum it could hold based on its displacement. In simple terms, if an engine’s cylinders fill completely with fresh air on each intake stroke, that’s considered 100% VE.
One commonly used formula for a naturally aspirated four-stroke engine is based on airflow in cubic feet per minute (CFM):
VE = (Airflow in CFM × 3456) ÷ (Engine Displacement in cubic inches × RPM)
This equation divides the measured airflow rate by the engine’s theoretical airflow capacity, adjusted for the 4-stroke cycle. The result is a percentage. While this version uses imperial units, the same principle applies in all variations: actual intake divided by theoretical capacity.
Engines rarely achieve 100% VE without forced induction. Most naturally aspirated engines fall below this threshold due to intake restrictions, valve timing, and losses from friction or heat.
Why VE Matters for Power and Torque
Volumetric efficiency has a direct impact on an engine’s power and torque output.
Torque at the crankshaft is fundamentally linked to how much force the burning gases exert on the pistons. Horsepower is a function of torque and RPM, so a higher VE across the rev range can boost the entire power curve. Peak torque often coincides with peak VE. At high RPM, VE falls due to airflow limitations.
In practice, many production engines reach peak VEs of around 80–90% at the RPM where they make peak torque, which is by design. If VE drops off at higher RPM (as often happens when intake and cam timing aren’t optimised for very high speeds), torque drops off too, even if RPM continues to climb. This is why extending an engine’s peak power further up the rev range often requires modifications that improve high-RPM volumetric efficiency (such as more aggressive cam profiles or tuned intake runners).
How is VE Calculated?
Calculating volumetric efficiency requires measuring how much air the engine is actually ingesting under certain conditions and comparing it to the theoretical volume it could take in. The theoretical volume per engine cycle is just the engine’s displacement (for one complete cycle of all cylinders). Since a four-stroke engine only draws in air every two revolutions, that factor is accounted for in the formulas.
A basic approach is to:
- Measure the air entering the engine, either by mass (using a MAF sensor) or volume (using known flow rates or CFM).
- Determine the amount of air that should fill the cylinders based on displacement, RPM, and ambient conditions.
- Divide actual intake by theoretical capacity and multiply by 100 to get VE as a percentage.
There are several valid formulas to calculate VE, depending on the data you have and the units you’re using:
1. CFM-based (Imperial)
If you have airflow in CFM and engine displacement in cubic inches:
2. Metric, volume-based
If you’re using metric volumetric flow (e.g. m³/s):
3. Mass-airflow based
If you have mass flow rate (e.g. from a MAF sensor) and want to account for intake pressure and temperature:
Regardless of the method, the result is a unitless percentage. For example, a VE of 85% means the engine is drawing in 85% of the air it could take in per cycle under ideal conditions. This is common for naturally aspirated engines at peak torque. Boosted engines can exceed 100% VE due to forced induction.
Factors Affecting Volumetric Efficiency
Why don’t most engines achieve 100% VE, and what influences this efficiency? There is a long list of factors. Some external to the engine, and some design-related. Key factors include:
Intake restrictions and design
Anything that impedes airflow into the engine will hurt VE. A clogged air filter, a throttle plate (when partially closed), or a small-diameter intake pipe can restrict flow. The intake manifold design and runner length also determine how air velocity and pressure waves behave, which can enhance or reduce cylinder filling at different RPMs.
Exhaust restrictions and tuning
The exhaust side must flow freely for the engine to breathe well. High back-pressure in the exhaust (from a restrictive muffler or catalytic converter, for example) can force exhaust gases to linger and dilute the next intake charge, lowering VE. Conversely, well-tuned exhaust headers use scavenging effects to help suck more fresh air into the cylinder, boosting VE.
Emissions Control Devices
Emissions equipment like EGR valves, catalytic converters, and secondary air injection can subtly affect VE. EGR recirculates a small amount of exhaust gas into the intake under part-throttle to reduce combustion temperatures and NOx emissions, but it slightly displaces fresh air, reducing VE in those conditions. Exhaust-side emissions devices (like catalytic converters and particulate filters) can increase back-pressure, lowering discharge volumetric efficiency by restricting flow. While these systems are critical for emissions compliance, they often come at the cost of some airflow and cylinder fill, particularly in engines with less aggressive valve timing or aspiration strategies.
Camshaft timing and valve events
The cam profile (lift, duration, and overlap) has a huge effect on VE. Longer duration and overlap can increase VE at high RPM by allowing more time for air to rush in (and even using the exhaust scavenging to pull intake air in). However, aggressive cams may reduce low-RPM VE (valves open too long or at the wrong time can let mixture back out). Variable valve timing (VVT) helps adjust valve opening times to maintain better VE across a broader RPM range.
Valve size and lift, and port flow
Larger valves, higher valve lift, and well-shaped intake/exhaust ports allow more air to flow into the cylinder more easily, raising VE. This is why high-performance engines often have multiple valves per cylinder and careful porting to reduce flow losses and improve breathing.
Ambient conditions (pressure, temperature, humidity)
High altitude or hot conditions reduce air density, lowering VE. The atmospheric pressure drop at altitude means even at 100% volumetric fill, there’s less oxygen available than at sea level. Modern ECUs account for this via air density corrections, but the principle is that the engine is moving less mass of air.
Throttle and part-load operation
At wide-open throttle (WOT), the engine can breathe as freely as its design allows, so VE might be high. At part throttle, the throttle plate intentionally chokes airflow, so VE plummets. At idle with a nearly closed throttle, VE is extremely low, often well under 50%, as previously mentioned. This is also why diesel engines (which have no throttle plate) ingest a full charge of air even at light loads, giving them higher VE under those conditions and contributing to their efficiency.
Fuel induction method
Port-fuel-injected and direct-injected engines carry fuel into the cylinders differently. Generally, fuel presence in the mixture has a negligible effect on VE calculation (air is the dominant component by mass), but certain fuel setups (like wet intake manifolds vs dry) might have minor effects on volumetric efficiency due to fuel displacing some air or cooling the charge (cooler air is denser, aiding VE).
Positive induction (forced induction)
Superchargers and turbochargers do not magically raise the engine’s inherent pumping efficiency. However, by ramming more air in at higher than atmospheric pressure, forced induction raises the effective VE (the engine moves more air than its displacement would suggest at atmospheric pressure).
Minimum VE Limits
Volumetric efficiency isn’t just about chasing high numbers. There’s a lower threshold where engine function and valve dynamics begin to suffer. In compressor theory, 15% is considered the minimum suction VE needed to maintain stable valve operation. For real-world use, targeting 30% under normal conditions adds a safety margin for transient loads or internal modifications. Drop below that, and you risk poor valve motion, higher discharge temperatures, and a sharp drop in output. In specialised setups, like industrial or high-performance engines, discharge VE is sometimes assessed by timing rather than percentage to better control exhaust flow events.
How VE Changes Across the RPM Range
Volumetric efficiency is not constant; it varies with engine speed (RPM) and load. Most engines have a characteristic VE curve that rises, hits a peak, then falls off as RPM increases beyond a certain point. This is intimately connected with the engine’s torque curve: typically, the RPM at which peak torque occurs is also where VE is highest.
At low RPM, even with the throttle wide open, VE might be low. The airflow is slow, and the timing of intake valve opening/closing might not be optimal for cylinder filling when the piston is moving slowly. Additionally, if the cam has short timing (optimised for low speed), the cylinder might fill well at low RPM, but the engine simply isn’t moving much volume of air per minute. Conversely, if the cam is wild (long duration), at low RPM, the intake charge can be pushed back out (reversion), hurting VE at idle and low revs.
As RPM builds, the inertia of the air and the timing of pressure waves in the intake can dramatically improve cylinder filling. There is often an RPM band where the intake and exhaust system’s tuning align perfectly with the valve timing so that air rams into the cylinder right as the intake valve closes. This is where VE peaks (often around the midrange or 60–80% of the rev range in naturally aspirated engines). For many passenger car engines, maximum volumetric efficiency is intentionally tuned to occur around the typical cruising or midrange RPM (e.g. 2,000–4,000 RPM) for good overall performance. High-performance engines might target a higher RPM for peak VE to maximise top-end power.
After the peak, VE tends to drop off at very high RPM. There are a few reasons for this:
- increased friction and flow losses
- insufficient time for the cylinder to fill before the valve closes
- intake resonance falling out of sync
Unless the engine has variable intake geometry or cam timing to compensate, the volumetric efficiency beyond a certain RPM will decline, leading to the falling side of the torque curve. For example, an engine might have 95% VE at 5,500 RPM but only 85% by 7,000 RPM as breathing efficiency slips.
Importantly, engine load (manifold pressure) also affects VE. At part throttle (low manifold pressure), VE is low because the cylinder isn’t being filled to its potential volume (by design, the throttle is restricting air). This is why VE tables in speed-density engine management use both RPM and load (often manifold pressure) axes; VE changes in both dimensions.
In the vacuum region (high manifold vacuum, light load), VE values can be very low. At WOT (near atmospheric manifold pressure for NA engines), VE is highest for that RPM. Modern systems like variable valve lift or multi-stage intakes aim to keep VE higher across a broader range of conditions, but the fundamental peak-and-drop behaviour with RPM remains.
Pulsewidth-Based Tuning vs. VE-Based Tuning
When it comes to engine management, there are two broad approaches to fueling: traditional pulsewidth-based tuning and newer VE-based tuning. Understanding the difference is important for tuners and enthusiasts who are adjusting fuel maps.
Pulsewidth-Based Tuning
In older or simpler engine management systems, the fuel map often directly commands injector pulse widths (or a value proportional to them) for each operating point (RPM vs load). Essentially, the numbers in the table might directly correspond to how long the fuel injectors stay open, in milliseconds or in an arbitrary fueling unit. Tuning in this system means adjusting those numbers so that the resulting air/fuel mixture is correct. If you change injectors (size) or fuel pressure, all those pulsewidth values need retuning. It also doesn’t directly tell you anything about how the engine is breathing; you’re just calibrating fuel delivery by trial and error for each cell. For example, two different engines might coincidentally use a pulsewidth of 5 ms at a certain load, but one could be a small engine at high VE and the other a big engine at low VE; the raw number doesn’t reveal that.
Volumetric Efficiency-Based Tuning
Modern ECUs (found in systems like AEM Infinity, Haltech, MegaSquirt/MS3 Pro, etc.) often use a volumetric efficiency model as the basis for fueling. In a VE-based system (also known as the speed-density method), the fuel map table contains VE percentages (or numbers that represent VE) for each RPM vs load cell, rather than direct fuel injector durations. The ECU uses the VE, along with sensor inputs like manifold pressure and intake air temperature (from the MAP and IAT sensors) and known constants like engine displacement and injector flow rate, to calculate the required fuel pulsewidth on the fly. In effect, the math of the ideal gas law (air density) and injector flow is handled internally. The tuner’s job is to input accurate VE values so that the ECU’s calculated fuel delivery matches what the engine needs for the commanded air-fuel ratio.
There are advantages to VE-based engine tuning. It brings a lot of predictability and flexibility. If you increase VE at a certain cell, it’s because the engine actually is moving more air. The ECU then adds fuel accordingly to maintain the correct mixture. It’s a physics-based approach. Changes in altitude or air temperature are automatically accounted for because the ECU recomputes air mass each time (using the MAP and temperature data), so your tune remains consistent.
Likewise, if you swap to bigger injectors, you simply update the injector size in the ECU, and the same VE table still works. You don’t have to retune every cell, since VE hasn’t changed (the engine’s breathing is the same, only the fueling hardware changed). As one publication noted, moving away from the guesswork of pulsewidth tuning means you’re no longer estimating how long an injector needs to fire for a given outcome. The VE model does that math for you. This typically results in a smoother tuning process and often better drivability out of the box, because the ECU can adjust fueling more linearly and predictably as conditions change.

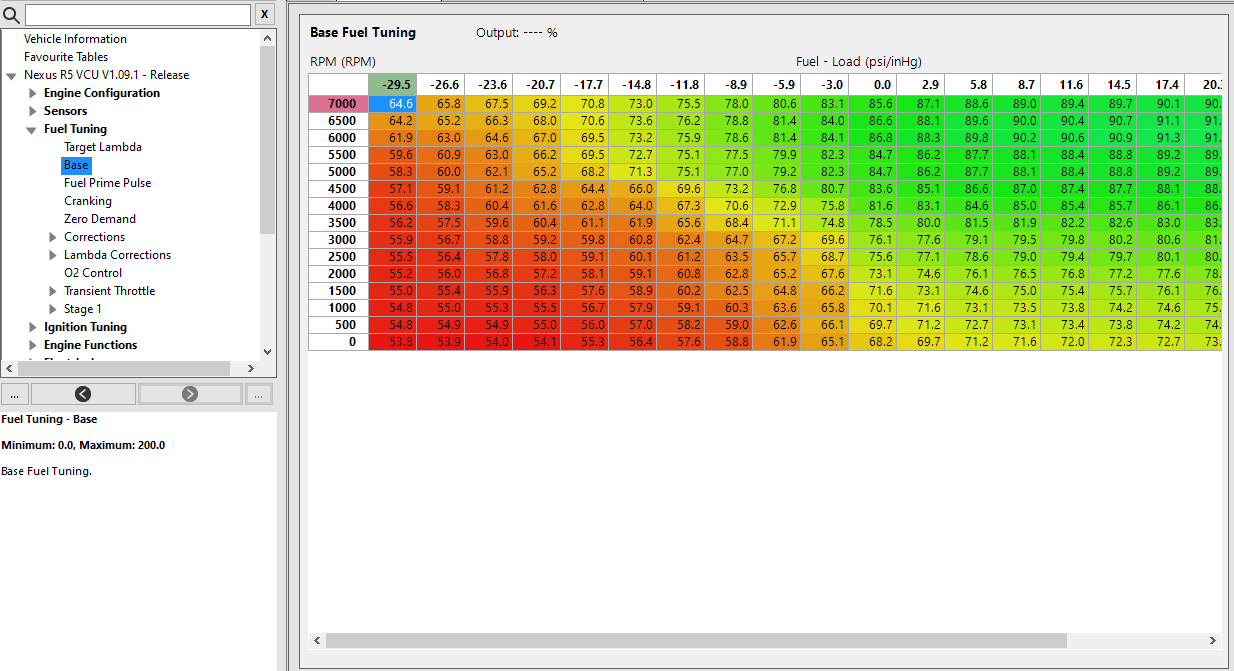

Reading and Tuning a VE Table
If you open the VE table in a modern ECU tuning software, what do you see? Typically, it’s a grid of numbers with engine RPM on one axis and load (often manifold pressure in kPa, or sometimes throttle position) on the other. Each cell’s value represents the volumetric efficiency at that operating point (how full the cylinders are as a percentage of their volume).
For a naturally aspirated petrol engine, the VE values might look something like this:
- Idle (low RPM, low load): VE in the range of ~30–40% is common. At idle, the throttle is nearly closed and the engine isn’t sucking in much air, so the cylinders are far from full.
- Cruise/light load (e.g. 2500 RPM, part throttle): VE perhaps 50–70%. The throttle is partially open, and the engine is in a moderately efficient zone; many engines achieve their best fuel efficiency at these mid-range, mid-load points.
- Peak torque (e.g. 4000–5000 RPM at WOT for a typical NA engine): VE might be 85–100%. This is where the engine is breathing most efficiently. Well-designed 4-valve (per cylinder) engines can reach high 90s in VE here. A heavily tuned naturally aspirated engine might even slightly exceed 100% at its sweet spot (more on that in a moment).
- High RPM near redline (WOT): VE may drop to, say, 80–90%. As the engine revs beyond the optimal range, efficiency falls off a bit due to valve timing limits or flow choking. Unless the engine is specifically built for very high RPM breathing, the VE won’t stay at peak all the way to redline.
On a turbocharged or supercharged engine’s VE table, you will see values over 100% in the high-load regions (boost allows more air than 100% VE would suggest). For instance, a turbocharged engine running moderate boost, VE numbers of 120–150% (or higher for big boost) are not unusual in the top right of the table. These numbers reflect the effective VE under boost. The engine might only be 90% efficient at pumping, but the forced induction has increased the air density so much that the cylinder ends up with more than 100% of the sea-level atmospheric air mass.
Tuning a VE table involves adjusting those values so that the calculated air-fuel ratio matches the actual (measured) air-fuel ratio. In practice, a tuner will often log data with a wideband O₂ sensor and see if the engine is running rich or lean at each cell, then tweak the VE number up or down. Raising the VE value in a cell tells the ECU the engine is taking in more air at that point, so it will inject more fuel (richening the mixture). Lowering the VE does the opposite. The goal is to achieve the target AFR (often stoichiometric for cruise, or a bit richer for power) at all operating conditions. Most tuning software can overlay a fuel trim or error, making it relatively straightforward to nudge the VE table until the commanded and actual AFR align.
A well-tuned VE table will have a smooth shape that follows the engine’s breathing characteristics. For example, you might observe the highest VE numbers around the RPM of peak torque, tapering off at higher rpm, and lower VE at low rpm or low load. Sudden spikes or dips usually indicate either a tuning error or some anomaly (like a resonance point or a sensor quirk). Tuners also learn typical ranges: if you see an idle VE of 80% on a little 4-cylinder, something is probably off (perhaps the injector characterisation or a sensor reading). Experience and logs guide the final tweaks.
Practical Applications: Improving VE for Performance
Almost any modification that helps the engine breathe more freely or fill its cylinders more on each cycle will improve VE, and thus can increase power if properly tuned. Here are some examples:
Upgrading the intake system
A less restrictive intake air filter or intake pipe, or a cold air intake that provides denser air, can reduce pressure drop before the throttle. A larger throttle body or larger-diameter intake runners can also help if the stock components were a bottleneck. These changes aim to get more air into the engine with less resistance, raising VE at the affected flow range.

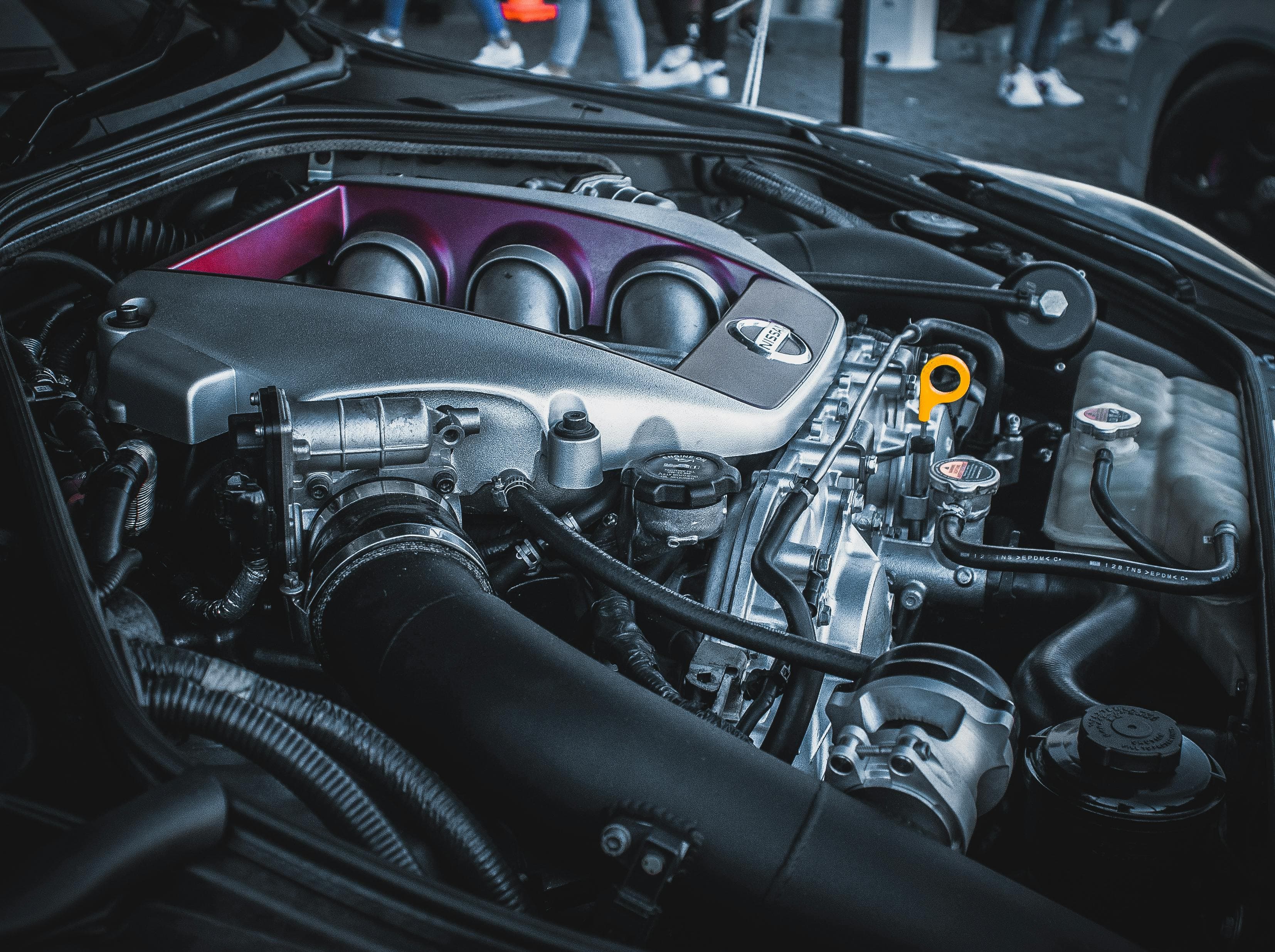

Tuned intake manifold runners
The length and shape of intake runners can be optimised to use the ram effect at certain RPMs. For instance, long runners boost low RPM torque/VE by harnessing pressure waves at lower frequencies, whereas short, straight runners favour high RPM VE. Some high-performance engines even have variable intake manifolds that change runner length on the fly to broaden the VE curve.
Performance camshafts
As mentioned earlier, cams with higher lift and longer duration (and overlap) can significantly improve volumetric efficiency at high RPM by letting more air charge in. For example, a cam that holds the intake valve open longer can use the momentum of incoming air to continue filling the cylinder even as the piston starts the compression stroke. This can push VE toward or beyond 100% around the cam’s tuned RPM. The trade-off is often lower VE at low RPM, so cam selection must match the intended operating range.
Cylinder head porting and valve upgrades
Porting (smoothly reshaping and enlarging the intake and exhaust ports) can remove airflow restrictions in the cylinder head, increasing the flow coefficient. Bigger valves or multi-valve heads allow more air flow area. These modifications boost VE especially at higher lifts and higher airflow demand. A well-ported 4-valve head, for instance, might achieve a VE in the high 90% range where a stock head was in the 80s.
Maintaining a carbon-free cylinder head is also important to prevent restrictions. This is why I made sure the intake ports on my direct-injection engine were cleaned from time to time with walnut blasting.
Exhaust headers and low-restriction exhaust
A good set of tuned-length headers can greatly improve scavenging. When timed right, the exiting exhaust pulse creates a vacuum wave that helps suck in the next cylinder’s intake charge. This inertial supercharging effect is exactly how some NA engines exceed 100% VE. Additionally, high-flow exhaust components (high-flow catalytic converters, straight-through mufflers) reduce back-pressure, so the piston doesn’t waste effort pushing out exhaust against a restriction. This reduction in pumping losses indirectly improves volumetric efficiency on the intake stroke.
Forced induction
While adding a turbocharger or supercharger doesn’t change the engine’s mechanical pumping efficiency (VE in a purely geometric sense), it increases the mass of air ingested dramatically. Effectively, it raises VE beyond 100% by using external force to pack more air in. This is why turbocharging is such a powerful tuning approach. Even a modest 7 psi (~0.5 bar) of boost can take an engine that was 90% VE at best and make it ingest equivalent to ~135% or more VE. Of course, fueling and internal components must be upgraded to handle the extra air and power. It’s worth clarifying that exceeding 100% VE does not violate physics or conservation of mass. It simply means the engine is drawing on dynamics (pressure, inertia) to pack extra air into the cylinder.
Reducing throttling at part load
Some innovations aim to improve VE in everyday driving conditions, such as variable valve lift systems (like BMW’s Valvetronic), which eliminate the traditional throttle plate and instead control air intake by the valve opening. This avoids the large pumping losses of pulling air through a nearly closed throttle at light loads. The result is a higher effective VE at low and mid loads and a more responsive engine. Similarly, strategies like cylinder deactivation can raise part-load VE on the active cylinders (because the throttle can open more for a given total output).
Optimising engine management
Proper tuning of fuel and spark can’t magically raise the geometric VE, but it ensures you’re realising the VE that the hardware allows. For instance, leaning out an overly rich mixture or adjusting ignition timing can sometimes increase torque output at a given VE. More directly, if you have adjustable cam timing (VVT cam gears), tuning their actuation can shift or broaden the VE curve to improve power under the curve.
Final Thoughts
Volumetric efficiency is a foundational concept in understanding engine performance. By quantifying how well an engine draws in air, VE connects the dots between design choices (cams, intake, exhaust) and the torque and power we feel. Keeping an eye on VE helps ensure each change is grounded in the physics of airflow. In performance tuning, we often chase horsepower numbers, but those numbers ultimately come from efficiently moving air in and out of the engine.
By combining real-world experience with engineering principles, we can use volumetric efficiency to our advantage: diagnosing bottlenecks, guiding modifications, and tuning engines to hit that perfect mix. After all, an engine is just an air pump at heart, and the better it pumps, the stronger it runs.
