Understanding Compression Ratio
Modern turbocharged engines run a compression ratio that older engines could not handle on pump fuel. Direct injection, tighter combustion chambers, and more precise control over timing and fuelling changed the game. That shift in engine design opened the door to more power from smaller engines without battling with increased pre-ignition or detonation.
The compression ratio sits at the centre of every serious tuning decision. It shapes torque, knock resistance, fuel choice, and how much boost you can safely run. If you care about building or tuning engines, you need to understand what this number really tells you.
Why Compression Ratio Matters
The compression ratio controls the pressure and temperature the mixture reaches just before ignition. That final state of the charge drives power potential and knock risk at the same time. Raise compression, and you gain more work from each cycle. Push it too far, and you lose ignition timing and reliability.
The number also affects how the engine feels. You see it in throttle response, off-boost torque, how much octane you need, how much boost you can run, and how much timing the tuner can safely command at full load. When I worked on performance engines, changes as small as 0.3 in compression ratio moved knock thresholds enough to force timing changes on the dyno. Those small changes show up in the data and on the road.
My Own Engine Build
Back when I was rebuilding the engine on my EA113 2.0 TFSI Golf GTI, I didn't opt for the higher output engine that most builders would do; I decided to keep my factory engine, which ticked all the boxes for me and how I wanted my engine to respond.

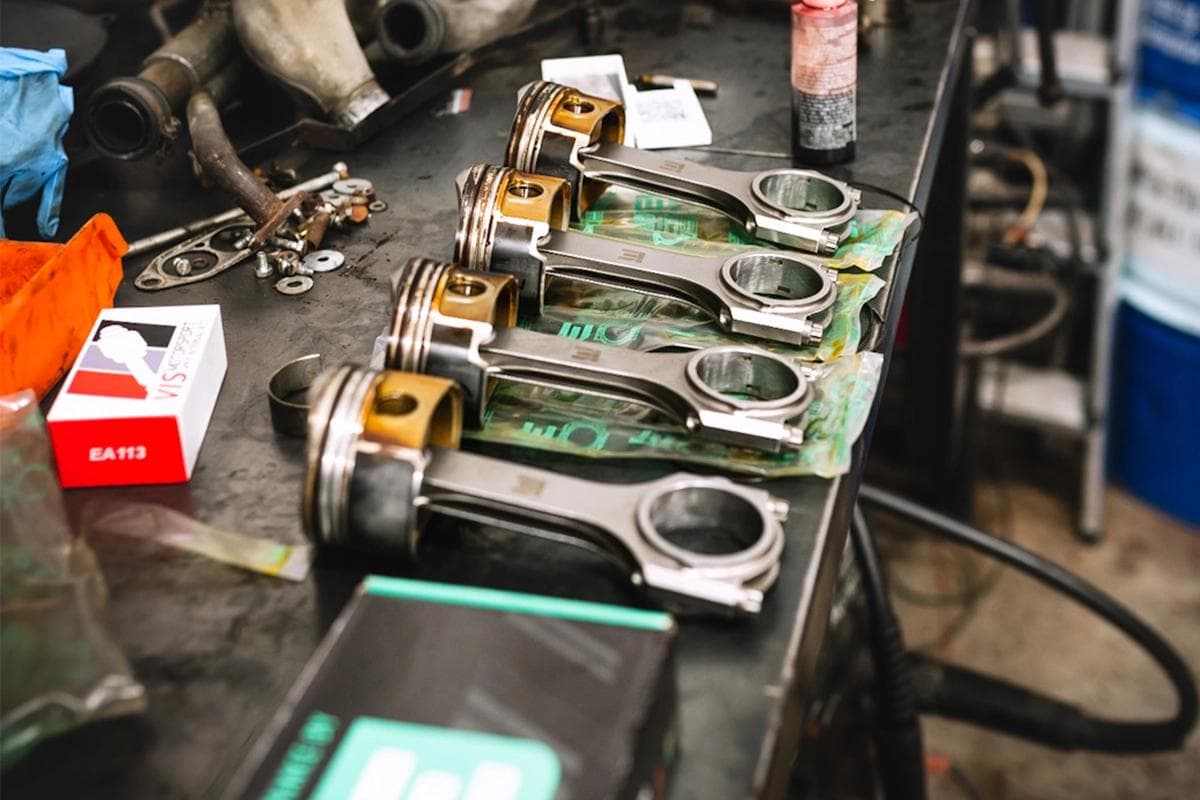

I found Integrated Engineering forged connecting rods with all the exact dimensions of my factory connecting rods. Luckily, the engine already had forged pistons from the factory with a piston crown design optimised to reduce knocking. I paired the forged connecting rods with factory forged pistons, and the result was a strong, high-compression AXX engine at 10.5:1, opposed to the 9.5:1 compression ratio of the "high output" CDL engine variant. The AXX engine was probably the least desirable for those looking to tune their engine. But many didn't care to look into the potential once rebuilt to withstand increased cylinder pressures.
This engine configuration with a K04 S3 turbocharger and supporting modifications saw boost increase 500 rpm earlier than the Golf R and S3 variants with the same hardware changes. Once Joe at JBM Performance had completed the final engine tune, my setup was easily seeing 375bhp and more street drivability. This, paired with a limited-slip differential, produced one of the most fun and usable road cars I have ever driven and owned. It was a screamer and felt so much more lively compared to other 2.0 TFSI's I had driven on almost a daily basis. I only wish I were able to keep it and add a Nortech turbo kit to see its real potential!
You have to ask yourself: what do you want from your engine? Strong low rpm punch, big top-end power on boost, or a compromise between the two?
What Compression Ratio Means
Static compression ratio compares the total cylinder volume at bottom dead centre with the clearance volume at top dead centre. In other words, it tells you how much you squeeze the mixture before the spark fires. This value stays fixed unless you change pistons, gaskets, chamber volumes, or deck height.
The picture gets more interesting once cam timing enters the story. The intake valve does not close exactly at bottom dead centre, so the cylinder does not trap all the swept volume. An early intake valve closing traps more charge and raises the effective compression. A late closing of the valve lets some of the charge flow back into the intake, which lowers the effective compression at low rpm. Two engines with the same static ratio can behave very differently across the rev range if one carries long-duration cams and aggressive overlap.
Cylinder pressure depends on more than compression ratio. Intake temperature, boost, fuel density, and valve timing all push the final pressure up or down. A boosted engine with a modest static ratio can run higher peak pressures than a naturally aspirated engine with a much higher static number. That is why you cannot judge safety on the ratio alone.
How Compression Ratio Affects Power
At low rpm, a higher compression ratio improves torque and throttle feel. You squeeze the mixture harder, the burn finishes sooner, and the engine extracts more work from each cycle. This shows up as better response every time you roll back into the throttle out of a corner or away from a junction.
At high rpm, airflow, combustion speed, and valve timing start to dominate. A well-designed chamber with a sensible compression ratio lets you carry more timing at high load without knock. A poor combination forces you to pull timing just when the engine should produce peak power. The same static number can work or fail depending on chamber quality, fuel, and cooling.
Higher compression reduces knock margin. The closer you push the mixture toward knock, the more timing you must sacrifice to stay out of trouble. Once you start trading timing for compression, you can reach a point where the engine makes less power than a slightly lower compression build that carries stronger timing across the map.
Thermal Efficiency and Performance Implications
Higher compression increases the thermal efficiency of an engine. You squeeze the charge into a smaller space, raise its temperature, and create a larger pressure difference between the start and end of combustion. That pressure difference determines how much of the fuel’s chemical energy becomes useful work instead of waste heat. This is the thermodynamic reason why a higher compression engine extracts more from each cycle. It is also why two engines with identical displacement can produce very different torque curves and fuel consumption figures.
There is a limit to the gains. Once compression rises past a sensible point, heat losses to the chamber walls start to increase. Peak pressure climbs, mechanical stress builds, and friction rises. The increase in thermal efficiency begins to flatten, even though the knock risk continues to rise. This is why most petrol engines see diminishing returns once you move far beyond a ratio of around ten to one, unless the chamber design and fuel quality support it.
Modern production engines show what is possible when the chamber, injection system, and cooling all work together. Mazda’s Skyactiv engines run extremely high compression on regular fuel because the chamber shape, piston design, and scavenging reduce residual gas temperatures. Toyota’s Dynamic Force engines follow the same idea. They carry high compression with strong mixture motion and precise control over valve timing. These designs show that compression ratio cannot be separated from chamber quality and thermal management. A well-executed engine can run ratios that older designs could never handle on pump fuel.
There is a trade-off. Higher compression increases peak cylinder pressure and temperature. The engine needs strong pistons, reliable bearings, consistent cooling, and stable ignition control to stay out of trouble. These demands grow quickly as compression rises, especially in forced induction applications where cylinder pressure climbs even faster. This is why experienced builders balance compression with their boost targets, fuel choice, and expected operating temperatures.
For a quick reference, the main thermal effects look like this:
- Higher compression increases the share of energy converted into useful work.
- Gains flatten out as heat loss, pressure, and friction start to climb.
- Chamber design, mixture motion, and valve timing decide how much compression you can carry.
- Strong materials and cooling are essential once pressure rises sharply.
- Forced induction multiplies every thermal effect, so compression must match the fuel and boost strategy.
Compression Ratio and Fuel
Higher compression needs higher octane because the mixture reaches knock temperature sooner. The exact limit depends on chamber design, mixture motion, and cooling, but you can use some rough bands as a starting point:
- Around 9.0 to 10.0 works on 87 octane in many modern engines
- Around 10.0 to 11.0 suits 91 octane in sensible chambers
- Around 11.0 to 12.0 usually needs 93 octane and good control of intake temperatures
- Above 12.0 tends to push you toward very high-grade pump fuel, race fuel, or E85
Pump fuel brings another problem. Quality and knock resistance vary with temperature, storage, and region. A compression ratio that looks fine on paper can run right at the edge in the real world if the fuel supply is inconsistent.
E85 changes the game. The fuel charge cools the mixture and gives far stronger knock resistance. Many tuners run 12.5 to 13.5 on E85 with the right engine internals, while still carrying healthy timing. The trade-off is fuel system capacity and availability at the pump.
Compression Ratio and Boost
Boost increases the mass of air in the cylinder and raises pressure before compression even starts. The cylinder then compresses that denser charge, so the actual peak pressure and temperature end up far higher than the static ratio suggests. This is why boosted engines run lower static compression than a naturally aspirated engine aimed at the same fuel.
For common road and track builds, a reasonable starting range looks like this, assuming good intercooling and sensible tuning:
- Mild boost on pump fuel: roughly 9.5 to 10.5
- Moderate boost on pump fuel: roughly 9.0 to 9.5
- Higher boost or marginal fuel supply: roughly 8.5 to 9.0
These are very approximate guides, not fixed rules. Engine design, cam timing, charge cooling, and fuel choice still matter. A modern direct-injection engine with a tight chamber can sometimes carry more static compression and more boost than an older port-injected design at the same octane.
Lower compression gives you more boost headroom but softens the response off boost. Higher compression gives strong low and mid-range torque but leaves less room for high boost. Think about how you really drive. Do you spend most of your time cruising and in the lower part of the rev range, or are you on boost, or living at the top end of the RPM on the track?
Compression Ratio Across Engine Types
Most modern naturally aspirated petrol engines run static ratios around 10.0 to 12.5. Good chambers, strong knock control, and better cooling make that possible. Turbocharged petrol engines usually sit between 9.0 and 10.5, depending on the intended boost level and fuel.

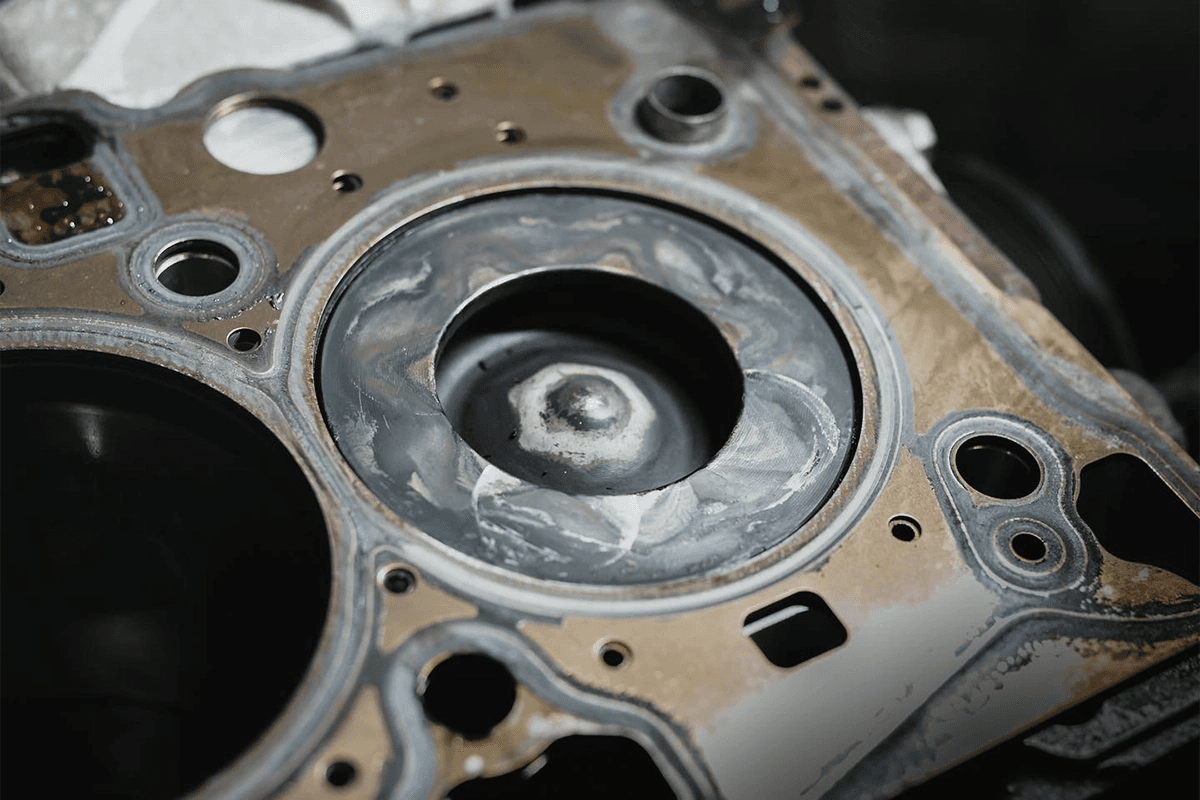

Diesel engines sit in a different range because they rely on heat from compression to ignite the fuel. Light-duty diesels often run between about 16.0 and 18.0, while heavy-duty units can push past 20.0. These engines need that range for cold starts, stable combustion at low rpm, and clean torque production.
Rotary engines complicate the picture. They compress the mixture between the rotor and the housing, and each rotor face creates its own working chamber. The published ratio describes chamber behaviour, but you cannot directly compare the number to a piston engine. A rotary with a 10.0 ratio does not behave like a 10.0 piston engine. For example, most Mazda rotary engines sit around 9.0 to 10.0, with turbo variants often lower again to keep heat away from the apex seals.
Variable Compression Ratio Engines
Variable compression ratio engines give the control system the ability to change compression while the engine runs. The goal is simple. Run a high ratio at light load to extract more work from each combustion event, then drop the ratio at high load to protect the engine from knock when pressure climbs.
Nissan’s VC Turbo engines are the best-known production example. They use a multi-link arrangement to change the piston’s top dead centre position. The mechanism alters the effective deck height and therefore the clearance volume, without touching the bore or stroke. In practice, you see the compression ratio move across a range, often from something like 8.0 up to around 14.0, depending on the design.
At cruise, the engine can raise compression, carry more timing, and reduce fuel use. Under boost and heavy load, the mechanism lowers compression, protects knock margin, and keeps the engine out of trouble. You end up with two behaviours from one short block: high-compression light-load operation and low-compression high-load operation.
From a tuning point of view, this adds a new layer. The control system treats compression as part of its safety strategy. The calibration has to consider not just boost and timing, but which compression state the engine uses at a given load and speed. Any aftermarket tuning needs a clear understanding of when the engine changes compression and how that interacts with ignition and fuelling.
How To Calculate Compression Ratio
Plenty of people search for compression ratio calculators and formulas because they want to check catalogued figures against real measurements. That is a smart move if you build engines, especially once heads and blocks go across a machine table.
Swept volume depends on bore and stroke. You calculate it with:
VS = π × (bore² ÷ 4) × stroke

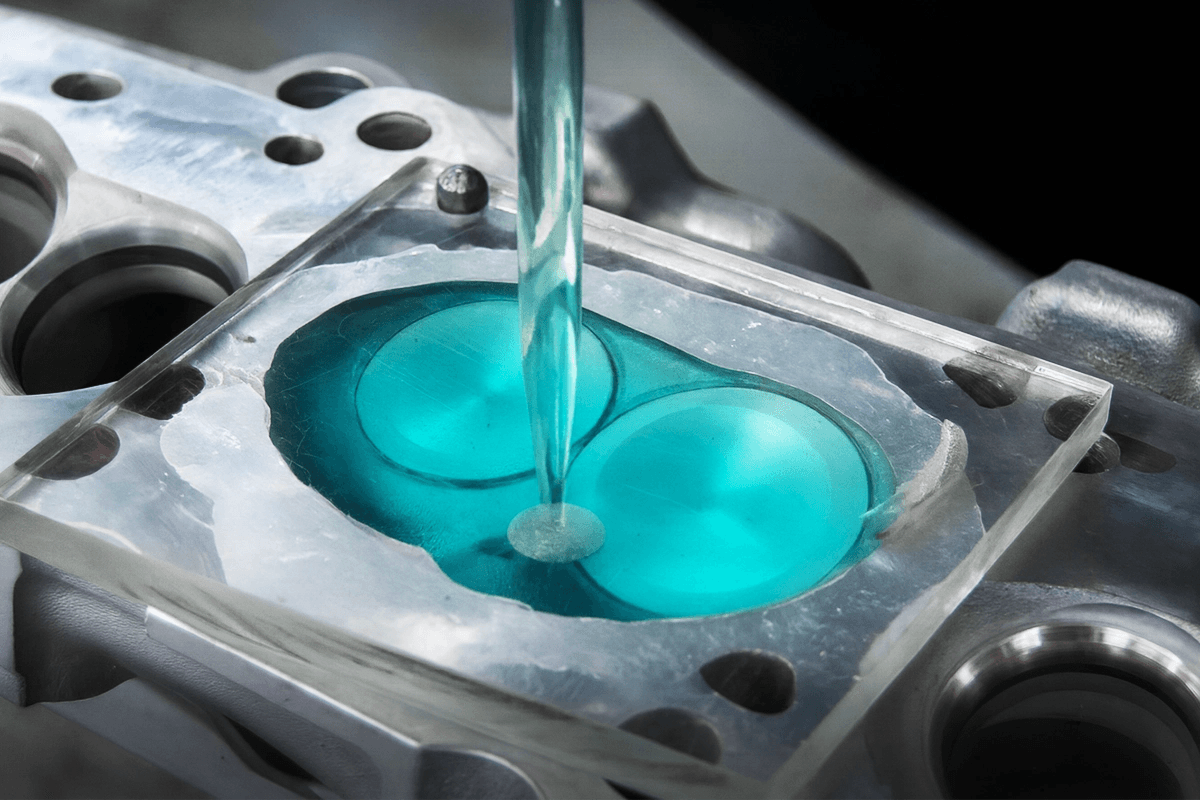

Clearance volume includes everything left above the piston at top dead centre. That covers combustion chamber volume, gasket volume, piston crown or dish, and any deck clearance. The only way to know this accurately is to measure it. I use a flat plate and a burette to fill the chamber and pockets, then record the volume. Small cuts from a skim, a thinner gasket, or a different piston can move the final number more than people expect.
Once you know both volumes, you use:
Compression ratio = (Swept volume + Clearance volume) divided by Clearance volume
Take a single 500 cc cylinder with a measured clearance volume of 50 cc. The calculation becomes:
CR = (500 + 50) ÷ 50 = 11.0
On paper, that looks like a healthy naturally aspirated petrol value on decent fuel. In reality, chamber shape and fuel still decide whether the engine runs comfortably at that figure.
Pros and Cons of High and Low Compression
High compression gives you strong torque at low and mid rpm, sharper throttle response, and cleaner combustion when the chamber supports it. For a naturally aspirated or mild-boost road car, this can transform how the engine feels during normal driving.
The trade-offs are clear. Knock margin shrinks, fuel choice becomes more critical, and your boost ceiling drops. Once you add forced induction, high compression can limit how far you push the tune, especially if you stay on pump fuel.
Low compression goes the other way. You lose some off-boost response and low-rpm torque, but you create more room for boost pressure on the same fuel. This suits higher power turbo builds where the goal is strong performance at full load rather than instant response at small throttle openings.
Practical Tuning Scenarios
For fast road cars that rarely see sustained high boost, a modest increase in compression can work well. You feel more response everywhere, especially on part throttle, and you do not need to chase extreme boost targets to enjoy the car. The key is to match compression with local fuel quality and keep intake temperatures under control.

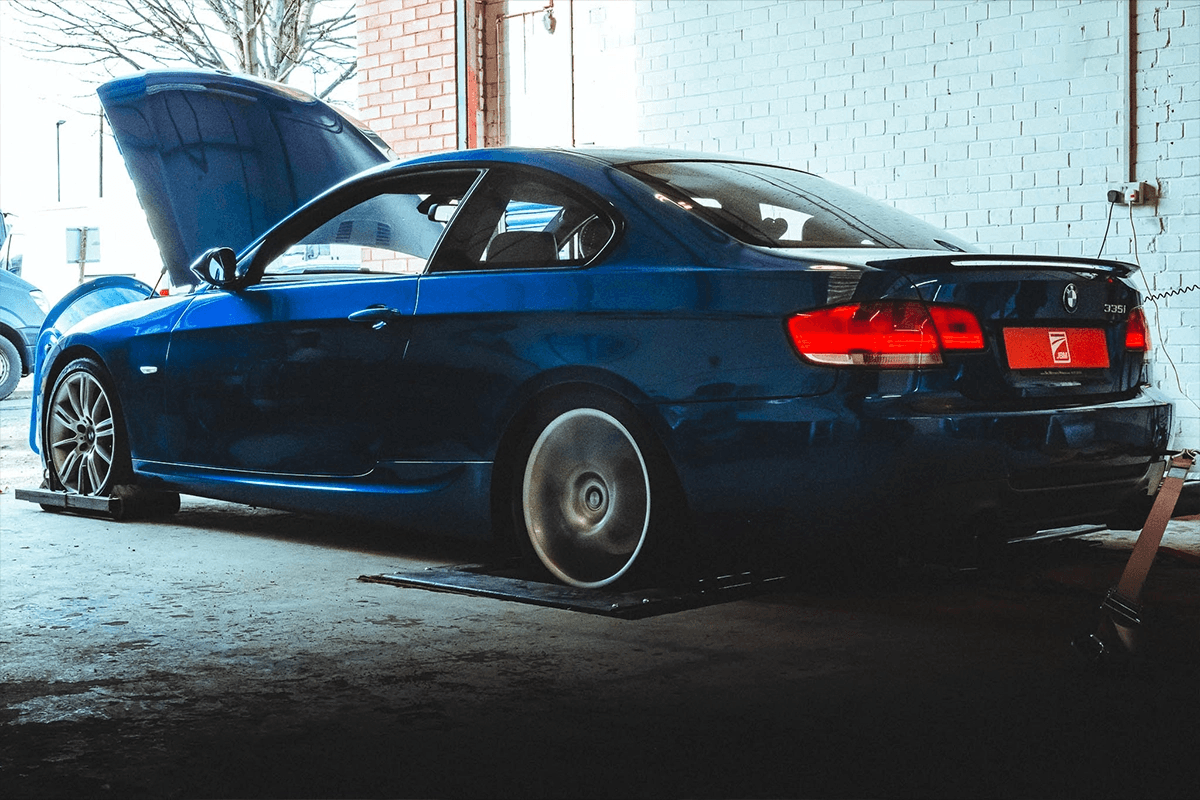

Track-focused builds care more about repeatability and heat management across a session. You want a compression ratio that lets the tuner hold stable timing even when coolant and intake temperatures creep up. Many track engines sit slightly lower in compression than a pure road-build equivalent, just to hold that safety margin when everything gets hot.
Forced induction projects demand a clear plan from the start. When building an engine, decide how much boost you want and what fuel you can use reliably. Then pick a compression ratio that fits those targets. Dropping compression far below the sensible range usually hurts more than it helps unless you're chasing very high boost on serious fuel.
Key Questions To Guide Your Build
Before you rebuild your engine with whatever is recommended to you by Bobby on the forums, whose shopping list came from a parts catalogue, lock in an idea of what you're looking to get out of your engine. When deciding on a compression ratio, ask yourself these questions:
- What fuel will you run every day, not just on tuning day?
- How much boost do you realistically plan to use?
- Do you value off-boost response more than peak power?
- Does your chamber shape support faster, stable burn at higher compression?

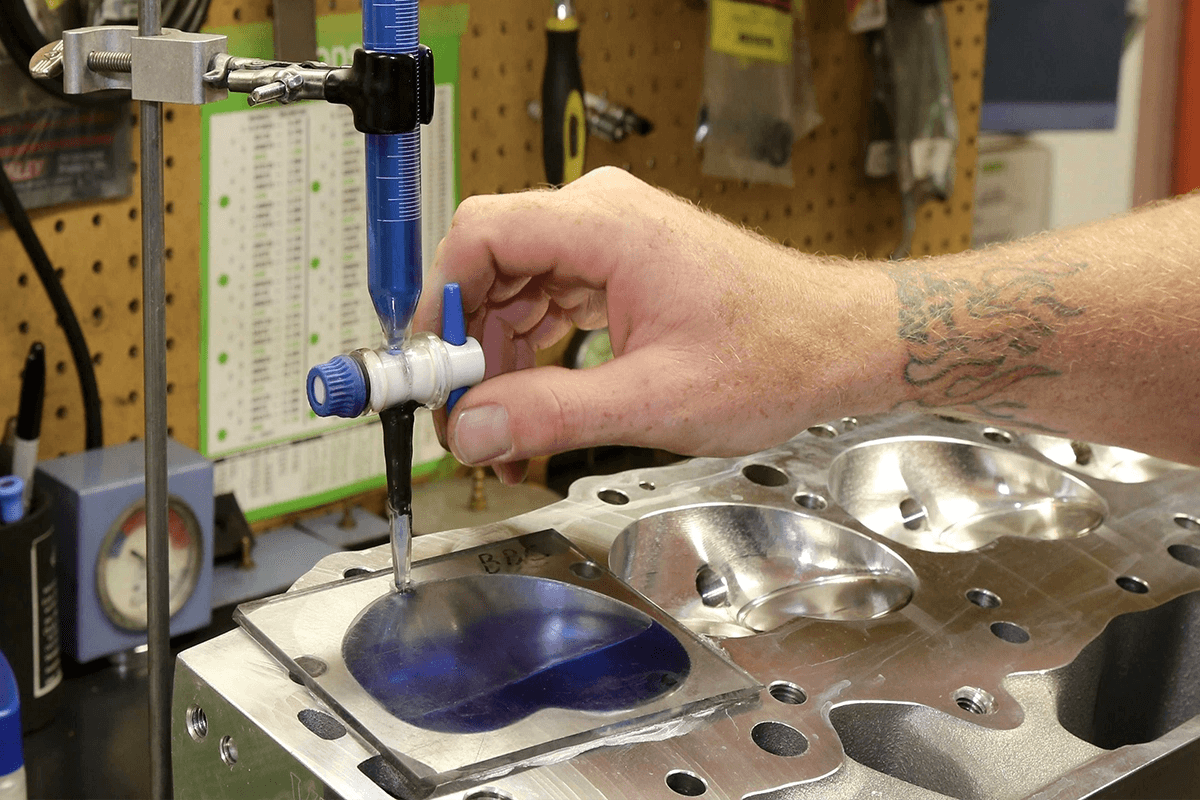

- Have you measured real chamber and piston volumes instead of trusting catalogue data?
- Are your coolant and intake systems ready for the extra thermal load?
- Does your tuner agree with your compression and fuel plan?
The right compression ratio is not a single magic number. It is the value that fits how you plan to use your car: The fuel, boost, cooling system, and the way you actually drive.
THE RIGHT Compression Ratios Rewards You
The compression ratio shapes how an engine behaves, how much timing it can carry, how it responds off boost, and how hard you can push it under load. Understanding how fuel quality, boost targets, chamber design, and cooling all interact with that single ratio, the tuning decisions become clearer. Every engine rewards a ratio that matches its purpose. When you choose one that fits the parts you use and the way you drive, the engine becomes stronger, more predictable, and far more enjoyable on the road or on the track.
