Understanding The Failures That Ruin Engines
Abnormal combustion can destroy an engine long before a warning light appears. Pressure rises sharply, pistons take the hit, and ringlands collapse under conditions they were never designed to handle. Detonation and pre-ignition get mentioned together, but they behave differently inside the combustion chamber. Once you understand that difference, preventing and identifying the cause becomes far easier.
My Motorsport Engineering degree covered the fundamentals and theory, but the real lessons were learnt while working around tuned engines. Practical experience reveals patterns that textbooks and slideshows only touch on.
Detonation
How it Starts and Progresses
Detonation begins after the spark event. The flame front moves as expected, but the remaining unburned mixture in the end gas region becomes unstable. Heat and pressure rise until that pocket ignites on its own. The result is a sharp pressure spike that hits the piston crown and ringlands.
Typical Behaviour
- Light metallic noise under load
- Timing being trimmed by the ECU
- Rough spots in the torque curve
- Events linked to high intake temperatures or lean mixtures
Why it Happens
- Ignition timing too advanced for the fuel
- Boost pressure pushed beyond safe mixture control
- Poor fuel quality
- Carbon buildup increasing the effective compression ratio
Damage Pattern
- Cracked ringlands
- Piston crowns with a peppered texture
- Spark plugs showing speckling on the ceramic
- Blow by and increased crankcase pressure
Detonation usually develops over repeated cycles. The engine gives clues if you are looking for them.
Detonation: In Practice
A real case from my time at JBM Performance that shows how quickly things escalate.
We had a MK2 Focus RS that arrived from a dealership with what looked like a simple oil leak. The first fix was the oil filter housing, which is a common failure point on B5254T engines. Once repaired, we restarted the car and found the crankcase heavily pressurised. Oil was being forced through the PCV system. That level of pressure pointed straight to ringland damage. To understand why, we looked at the car’s history.
We found that the previous owner had removed every performance modification before trading the car into the dealership: The larger turbo, injectors, decat exhaust and upgraded intercooler were gone. What they did not remove was the tune. The ECU still commanded fuel and timing for parts that were no longer fitted. Airflow dropped with the stock components, but the calibration delivered fuel for a much higher volume of air, leaving the engine running lean.
A lean mixture raises combustion temperature. Coupled with boost, this pushed the end gas into detonation repeatedly. Ringlands eventually cracked, and combustion pressure bled into the crankcase.
Once we rebuilt the engine and restored the calibration to the stock file, the RS behaved perfectly.
Ever since this experience, I have always kept an eye out for signs of modifications (or lack of) when logs don’t make sense. A tune written for a previous setup can destroy a healthy engine once the hardware changes.
Pre-ignition
A more aggressive and rapid failure. Pre-ignition does not wait for the spark.The mixture lights early because something inside the chamber becomes hot enough to ignite it. The piston then compresses a burning mixture, creating an uncontrolled pressure rise that exceeds the design's tolerance.
Typical Behaviour
- Harsh metallic noise
- Sudden loss of power
- Rapid temperature increase
- Timing adjustments that fail to control the event
Primary Triggers
- Spark plugs running hotter than intended
- Glowing carbon or metal deposits
- Oil droplets entering the chamber
- Local hotspots created by earlier detonation damage
Damage Pattern
- Melted piston crowns
- Missing material at the edges of the piston
- Broken spark plug electrodes
- Bore contact from debris
Pre-ignition causes immediate damage. It does not build slowly.
Pre-ignition: In Practice

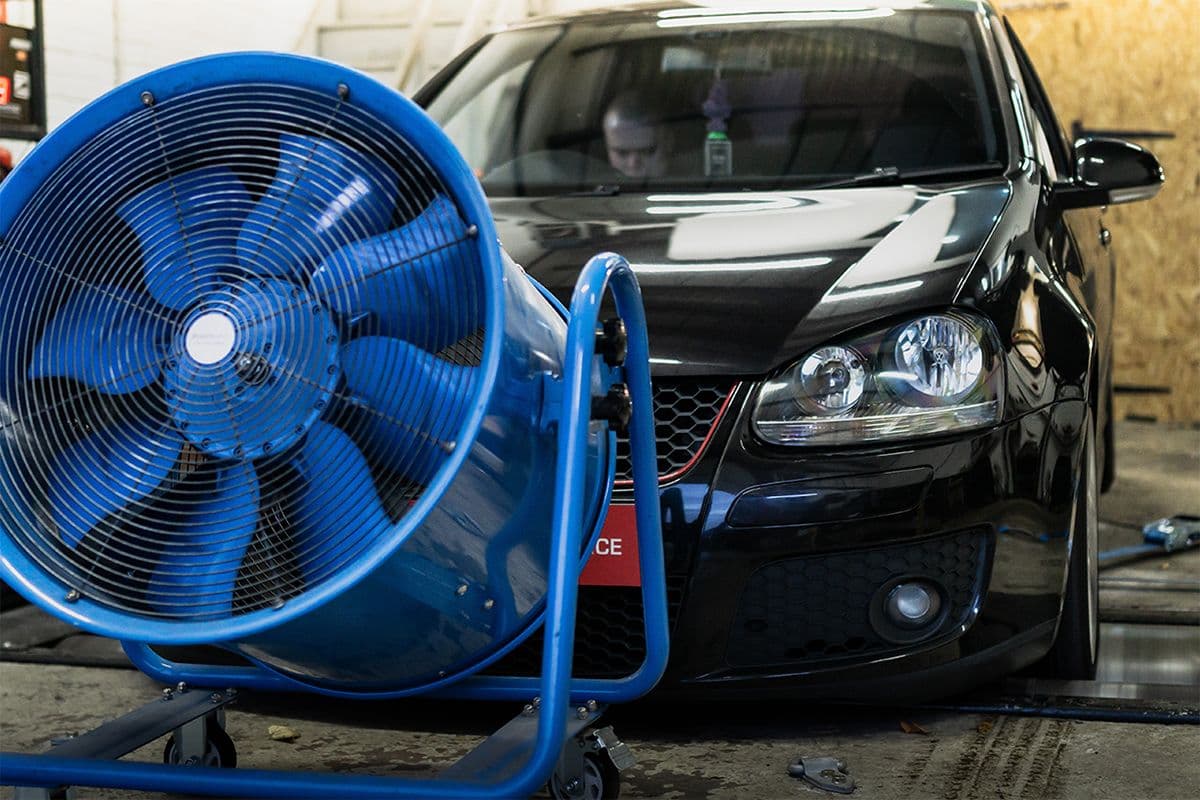

We once had a MK5 Golf GTI come in with a complaint about knock at full load. The owner assumed it was detonation. The logs did not support that. Timing was being pulled, but the pattern looked irregular. It did not match typical knock control behaviour. So we started by removing the spark plugs, which revealed what was really going on.

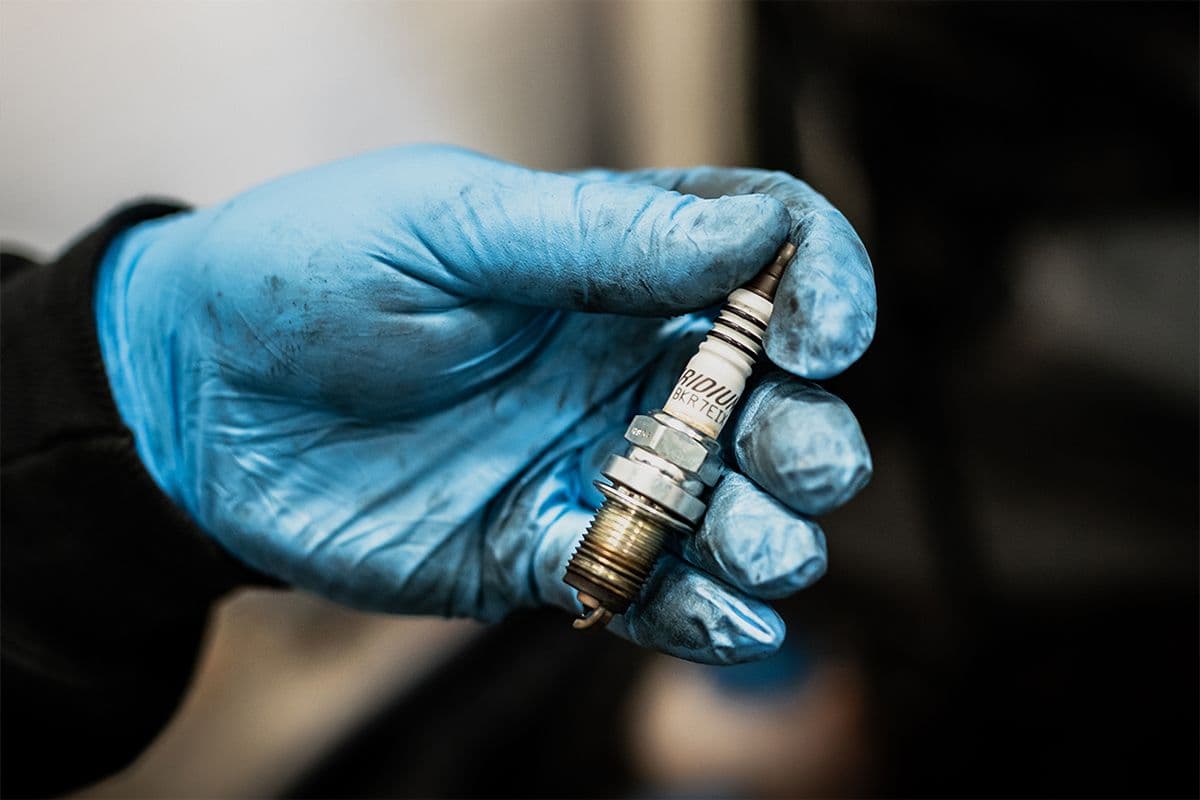

One plug showed a blistered ceramic nose, discolouration on the ground strap and evidence of overheating. This was not the speckled texture seen with detonation. It was thermal stress.
The owner had installed a hotter plug than the engine needed. Instead of transferring heat into the cylinder head, the plug retained it, and once the tip reached a high enough temperature, it began to glow. That hotspot ignited the mixture before the spark event.
We whipped out the borescope and confirmed the outcome: A section of the piston crown had softened and torn away. The failure was clean and contained to one area, which is typical when a single hotspot triggers pre-ignition. This was the result of sudden thermal overload rather than pressure-driven fatigue.
We rebuilt the affected cylinder, replaced the plugs with the correct heat range, and revised the calibration to reduce stress at high intake temperatures. After the repair, the engine returned to stable operation as expected.
This case highlighted a common problem and demonstrated how such a simple, serviceable part with the wrong specification can trigger a severe failure, even with a modest tune.
Why Are Both Failures Often Confused?
From the cabin, they are similar. Both faults:
- Sound like knock.
- Appear under load.
- Get worse with poor fuel quality.
- Can occur during aggressive tuning or after hardware changes.
It’s the internal timing difference that separates them:
Detonation
- Happens near the end of the combustion process.
- Can often be corrected by changing the timing or mixture.
Pre-ignition
- Happens before ignition begins.
- Continues until the heat source is removed.
| Category | Detonation | Pre-ignition |
|---|---|---|
| When it happens | After the spark | Before the spark |
| Primary trigger | Unstable end gas from heat and pressure | Hotspot ignites mixture early |
| Noise | Light, metallic rattle under load | Harsh, sharp knock with immediate power loss |
| Progression | Develops over repeated cycles | Sudden and destructive within moments |
| Common causes | Too much timing, lean mixtures, high IAT, poor fuel | Hot spark plugs, glowing deposits, oil droplets, previous damage |
| Damage pattern | Cracked ringlands, peppered piston crowns | Melted piston crowns, missing material, broken electrodes |
| ECU control | Knock sensors can reduce timing | ECU cannot prevent it once it begins |
| Driver experience | Noticeable knock that changes with load | Sudden failure with little warning |
| Risk level | Serious but usually avoidable | High. Often catastrophic |
Fuel Behaviour and Calibration Accuracy
Tuned engines rely heavily on the fuel they are mapped for. Before engine tuning, many owners claimed they were using premium petrol, yet logs showed timing corrections and unstable combustion. Switching to Tesco Momentum or Shell 99 instantly stabilised the burn. But once they returned to 97 RON, the cycle began again. Fuel quality sets the knock threshold. If the calibration expects more than the fuel can provide, detonation follows. It’s simple, really. If you’re getting your engine tuned to a higher octane fuel, don’t cheap out and use lower octane fuel, or you’ll be getting a much more expensive bill for your next engine rebuild.
Controlling Combustion in Tuned Engines
Engine protection relies on predictable pressure and temperature.
Key factors include:
- Fuel with suitable knock resistance
- Correct spark plug heat range
- Accurate injector scaling
- Stable mixture targets under boost
- Effective intercooling
- Healthy crankcase ventilation
- Calibration that matches the current hardware
Once any of these change, combustion stability shifts with it. Modern ECUs respond well to mild detonation by trimming timing. They cannot prevent pre-ignition. A glowing hotspot inside the chamber is outside their control.
Risk Across Different Engine Types
Naturally Aspirated Engines
- Sensitive to high compression and hotspots from deposits
Turbocharged Engines
- Higher thermal load and pressure
- More likely to show both failures if cooling or fuel supply falls short
Supercharged Engines
- Steady airflow
- Still vulnerable if timing is too aggressive at peak torque
Turbocharged engines are the most common candidates for both issues, especially when running tight calibrations on pump fuel.
Checks to Prevent Expensive Problems
Consistent maintenance prevents most abnormal combustion events.
It's worth reviewing:
- Spark plug specification
- Plug condition and any signs of heat stress
- Injector scaling and short-term fuel trims
- Intake temperature during extended pulls
- Receipts for previous modifications
- Whether bolt-ons still match the mapped configuration
- Timing corrections during normal driving
A tune is written for a specific combination of hardware and fuel. Once anything changes, the combustion profile changes with it.
Final Thoughts
Detonation gives you signs if you know what to look for, while pre-ignition arrives with little warning. Both failures occur when pressure, temperature or mixture fall outside the range the calibration expects. The triggers differ, but the root cause often stems from the same issue. Something in the engine’s setup no longer matches the map it is running.
Most problems begin when hardware and software fall out of sync. A tune written for one set of parts cannot protect the engine once those parts change. Fuel quality, spark plug heat range, injector scaling, boost behaviour and airflow all shape the combustion process. When any of these shift, the ECU’s load model stops reflecting reality, and the margin for error becomes very small.
You can avoid these failures with steady, predictable maintenance. Confirm that spark plugs match the build. Review fuel trims from time to time. Keep an eye on intake temperatures during long pulls. Review the receipts to determine if the car was bought with modifications, and ensure the current setup still aligns with the tune. Matching the calibration to the hardware is far more important than most people think.
Engines will remain reliable when pressure, temperature, and mixture behave as intended, matching the demand of the ECU. Strong fuel, the correct parts and a stable configuration go a long way towards preventing detonation and pre-ignition from ever starting.
